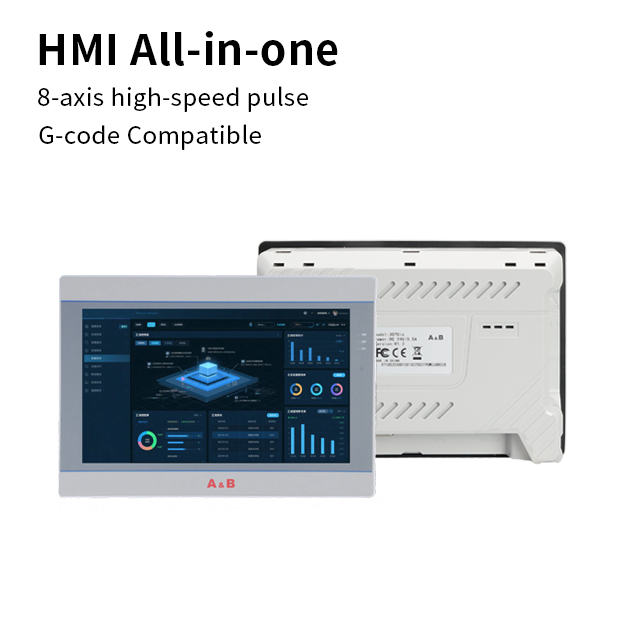

HMI PLC All-in-One

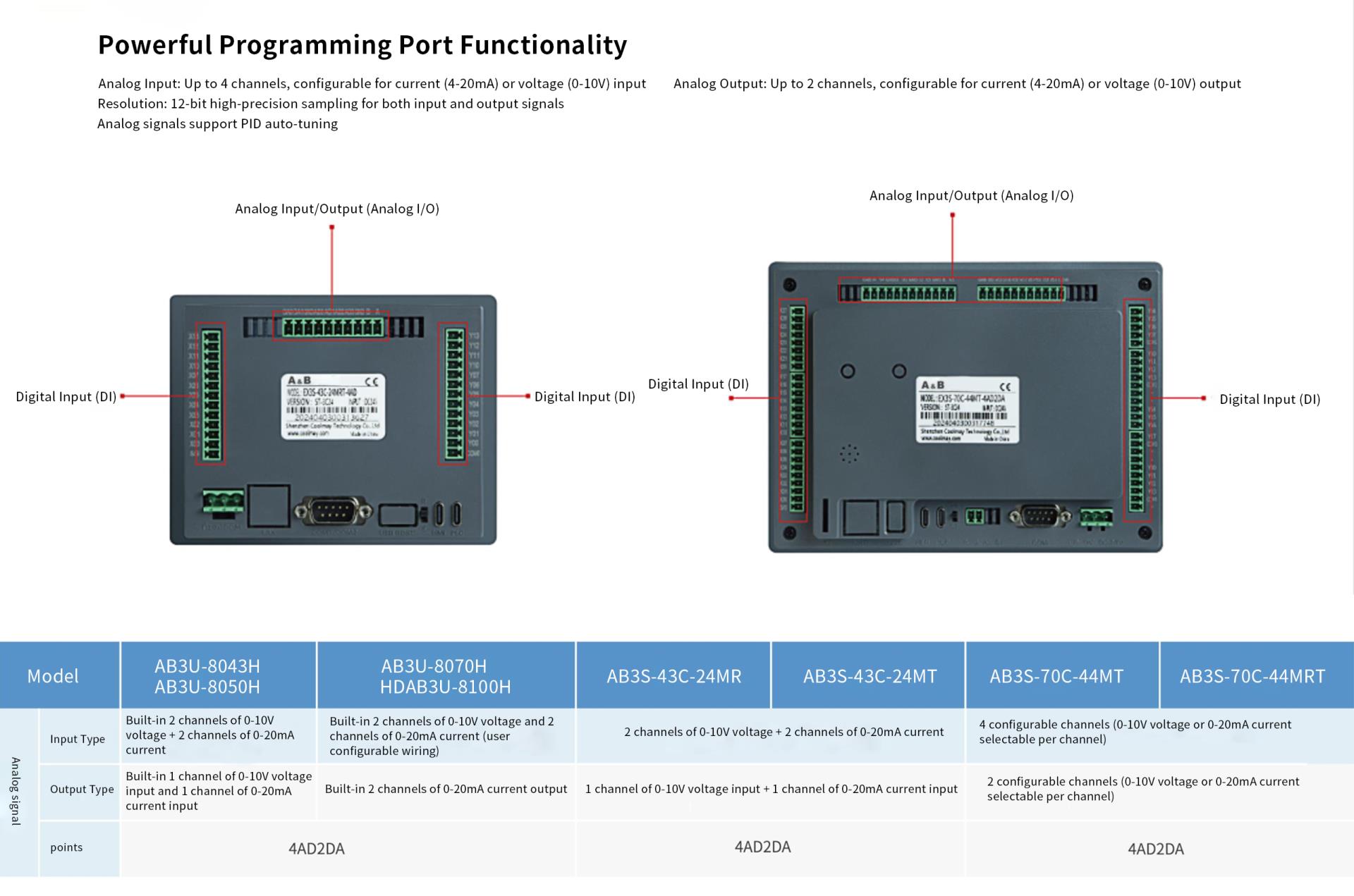

The model numbers are: AB3U-8043H/AB3U-8050H，AB3U-8070H/HDAB3U-8100H，AB3S-43C-24MR，AB3S-43C-24MT，AB3S-70C-44MT，AB3S-70C-44MRT

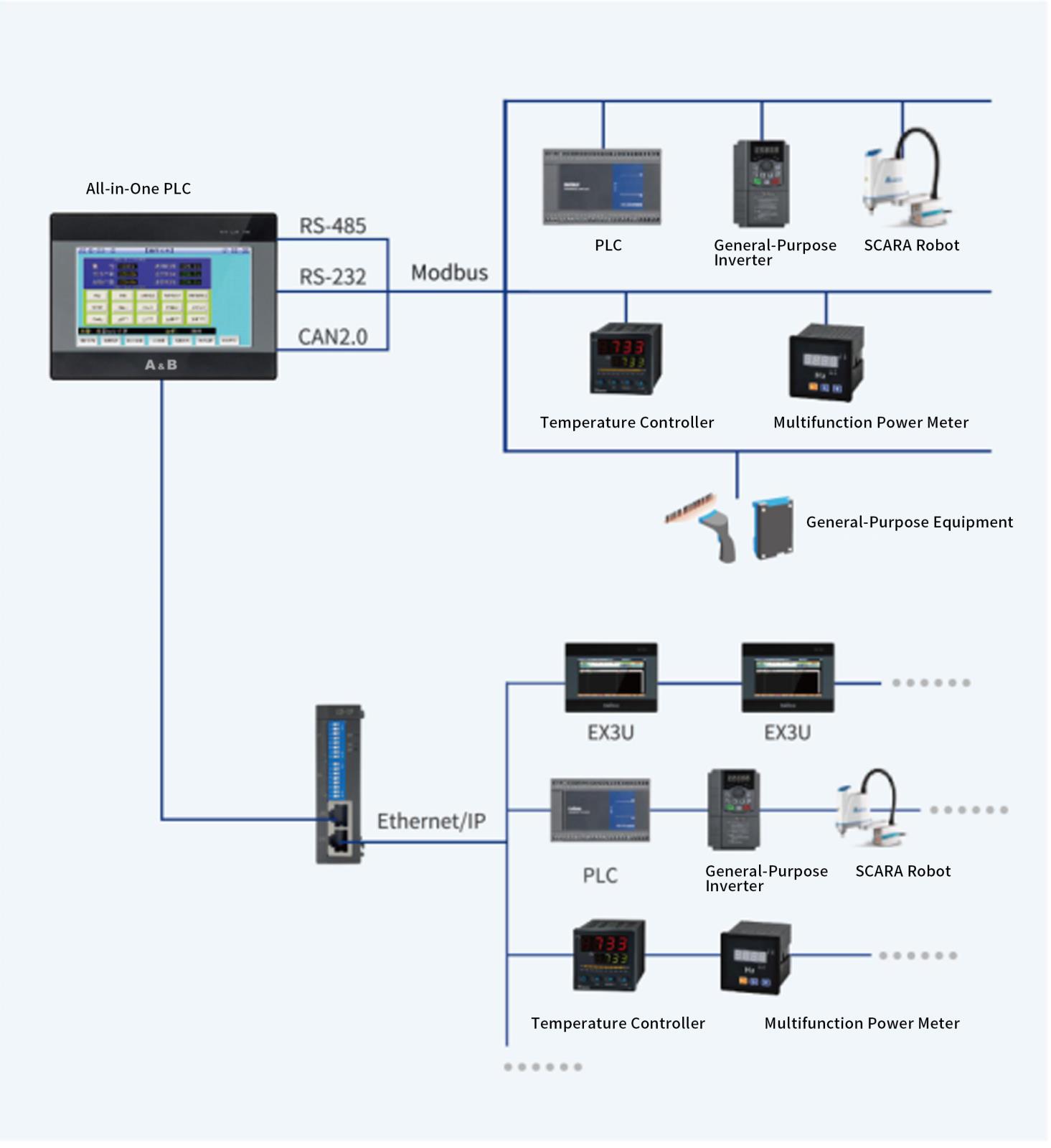

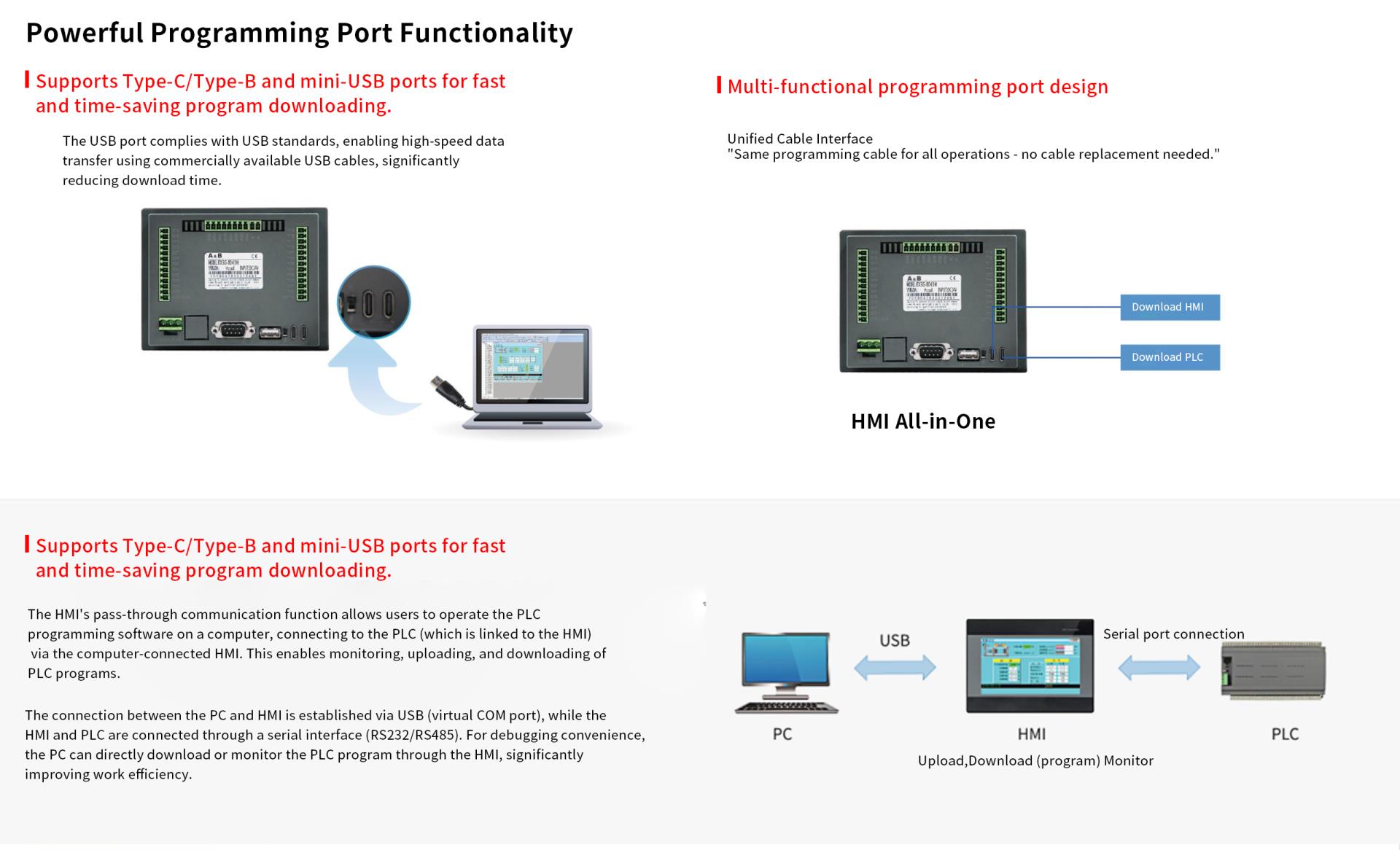

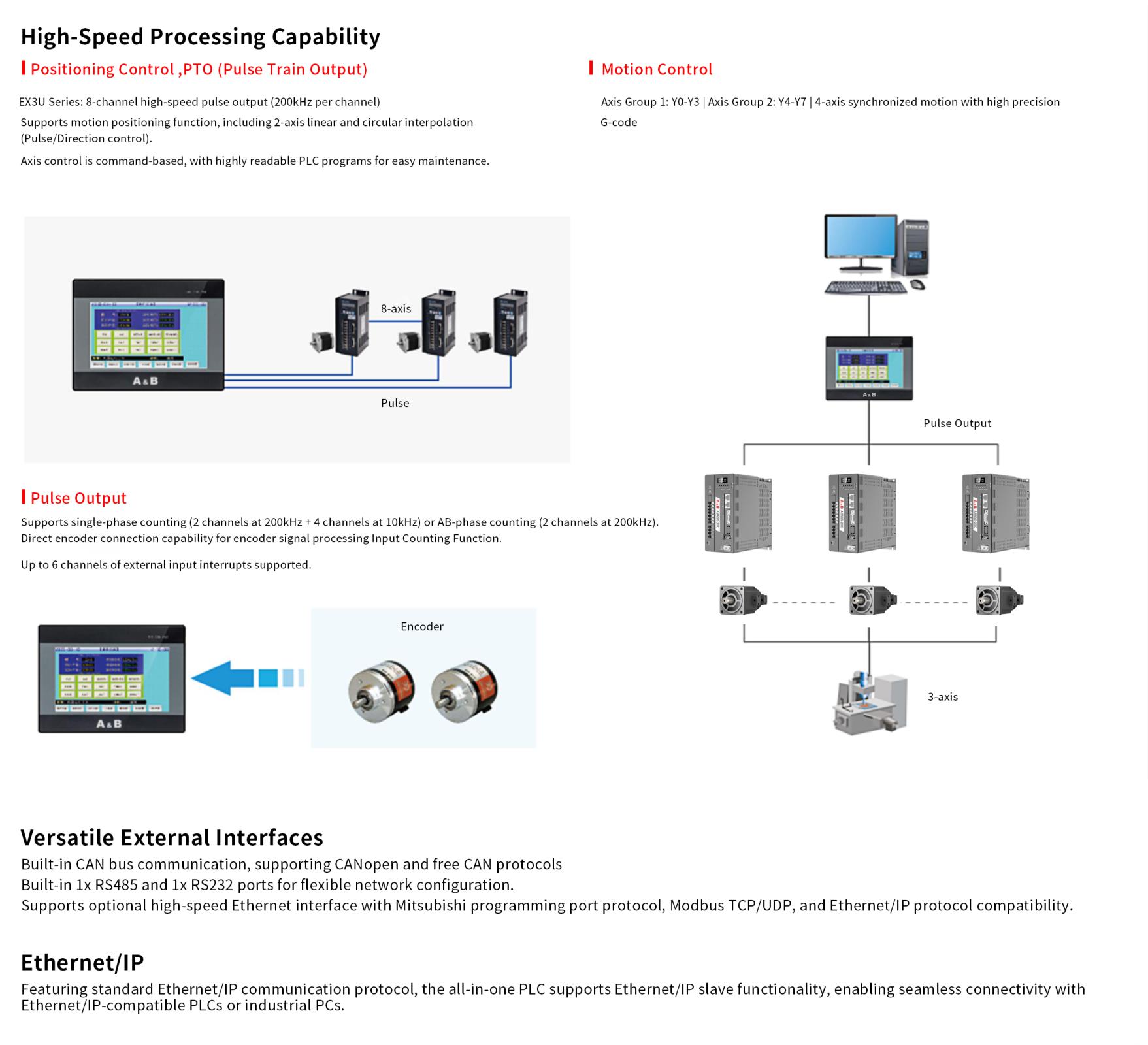

"Featuring standard Ethernet/lP communication protocol, the all-in-one PLC supportsEthernet/lP slave functionality, enabling seamless connectivity with Ethernet/lp-compatiblePLCs or industrial Pcs."

Send inquiry

Download Datesheet

DESCRIPTION

DOCUMENT

INSTALLATION INSTRUCTIONS

De-engineeringdesign, reduce costs and increase efficiency: Integrate logic

control, switch l/0, analog l/0, operator interface and communication ports into

one device

HMlformula function

Customers can write recipe file data on the HMl interface and easily switch between

different production modes.

User Rights Management

The HMl backend can set different user management and usage permissions toimprove device security.

Multilingual display

HMl can support up to 8 languages, making it convenient for multiple countries

to use ABHMl without barriers.

Ultra clear lot HMl

ABiglot HMl,specificallydesigned fortheInternet ofThingS

Is compatible with over 300 communication protocols and supports other brand label protocols,

with excellent device compatibility.

ig series modeldescription

Model/Specification		AB8043ig	AB8070ig	AB8101ig(N)
Project		Parameter
CPU		Four core high-performance processor
Touch Screen		Resistance-type
Display	Monitor	4.3 inch	7 inch	10.1 inch
	Resolution	480*272	800*480	1024*600
	LCD brightness	300 cd/m²	250 cd/m²	350 cd/m²
	Backlight	LED
	Backlight lifespan (half-life)	More than 20000 hours
Storage	Flash	4GB
	( Memory RAM)	512MB
	SD Slot	No	Yes	Yes (TF card)
I/O interface	USB interface	USB Host: USB 2.0 x1,USB Device : USB Type-C 2.0 x 1No isolation(Two USB ports cannot be used simultaneously)	USB Host: USB 2.0x1;USB Client: UsB 2.0 x1(Two USB ports cannot be used simultaneously)	USB Host: USB 2.0x1USB Device: usBType-C2.0x1
	serial interface	1 serial port
		RS232，RS422/RS485(two-in-one)，RS485
	Ethernet	Yes		Dual network port
	4G/WIFlmodule	Optional
Perpetual calendar		Built-in
Power specifications	Input power supply	24V DC(12-28V DC)
	power consumption	less than 8W		less than 10W
	power isolation	No
Structure specifications	Shell material	Engineering plastic ABS+ABS(Flame retardant level)
	External dimensions (WHD)	142.086.030.5mm	201.2147.239.0mm	271.0214.041.5mm
	Dimension (W*H)	131.0*76.5mm	192.0*138.0mm	259.0*202.0mm
	Weight	0.39KG	0.52KG	1.26KG
Operating environment	Protection grade	The panel complies with IP65
	Storage environment temperature	-20°C~70°C;
	Environmentaltemperature foruse	-10°C~55°C
	Environmental Humility for Use	10~90%RH(No condensation)
	Vibration resistance	10~25 Hz (X、Y、Z direction 26/30 minute)
Authentication		Compliant with CE certification standards
Software		APStudio Configuration Software
Function	Internet of Things Services	300 real-time data monitoring points
		200 monitoring points for alarm data
		100 historical data monitoring points
		Historical data retention days: 120 days/l million records
	Ordinary transmission	Yes
	VPN transmission	Optional		Yes
	Data upload	Yes

ie series modeldescription

Model/Specification		AB3035ie	AB3043ie	AB3043ie	AB3043ie-T
Project		Parameter
CPU		Four core high-performance processor
Touch Screen		Resistance-type
Display	Monitor	3.5 inch	4.3 inch	4.3 inch	4.3 inch
	Resolution	320*240	480*272
	LCD brightness	300cd/m²
	Backlight	LED
	Backlight lifespan (half-life)	More than 20000 hours
Storage	Flash	128MB
	Memory((RAM )	64MB
	SD slot	No
I/O interface	USB	Mirco-USB: USB 2.0 x1 (Can be powered through USB, download images and projects)
	Serial interface	A serial port ( 7-core terminal)		Aserial port ( 9 -core terminal)	A serial port ( DB9)
		No		Yes	Yes
	Ethernet	No
	HDMl interface	No
Perpetual calendar		Built-in
Power specifications	Input power supply	24V DC (12~28V DC)
	power consumption	less than 5W
	power isolation	No
Structure specification	Shell material	Engineering plastic PC+ABS (flame retardant grade)
	External dimensions (WHD)	96.081.033.0mm	96.081.033.0mm		142.086.038.9mm
	Dimension (W*H)	91.0*73.0mm	131.0*78.0mm		131.0*79.0mm
	Weight	0.14KG	0.19KG		0.21KG
Operating environment	Protection grade	The panel complies with lP65
	Storage environment temperature	-20°C~70°C
	Environmental temperature foruse	-10°C~55°C
	Environmental Humility for Use	10~25 Hz(X、Y、Z direction 26/30 minute
Authentication		Compliant with CE certification standards
Software		APStudio
Remote control		No
