The model numbers are: AB600E-40,AB600E-75,AB600S-40,AB600S-75, AB630S-40,AB630S-75,AB630S-100, AB630S-260,AB630S-380
Main Computer Power input:Single-phase AC 220V-15%~+10%,50/60Hz
The EtherCAT bus driver enables long-distance control andreal-time data/command transmission,significantlyimprovingsystem efficiency.

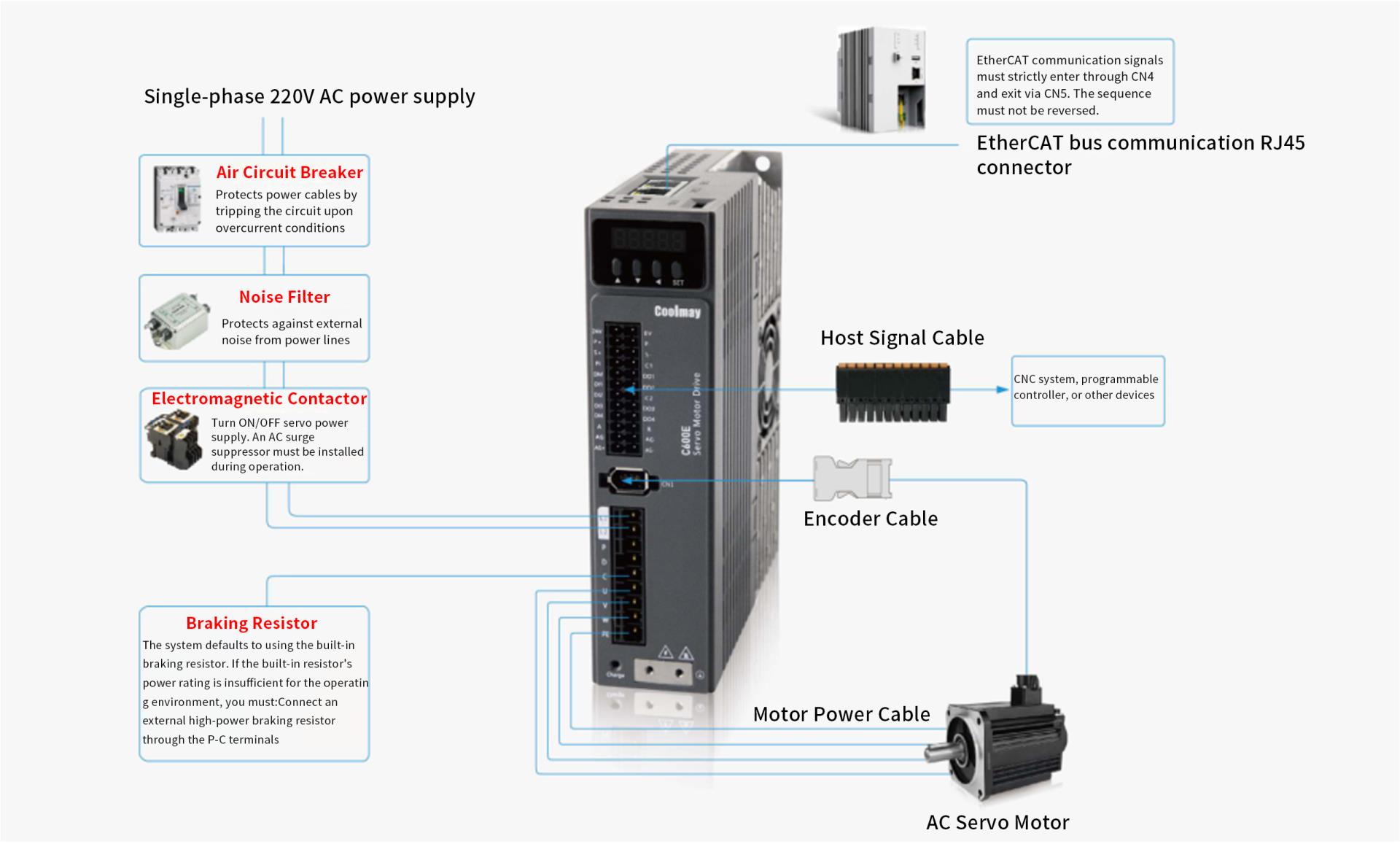

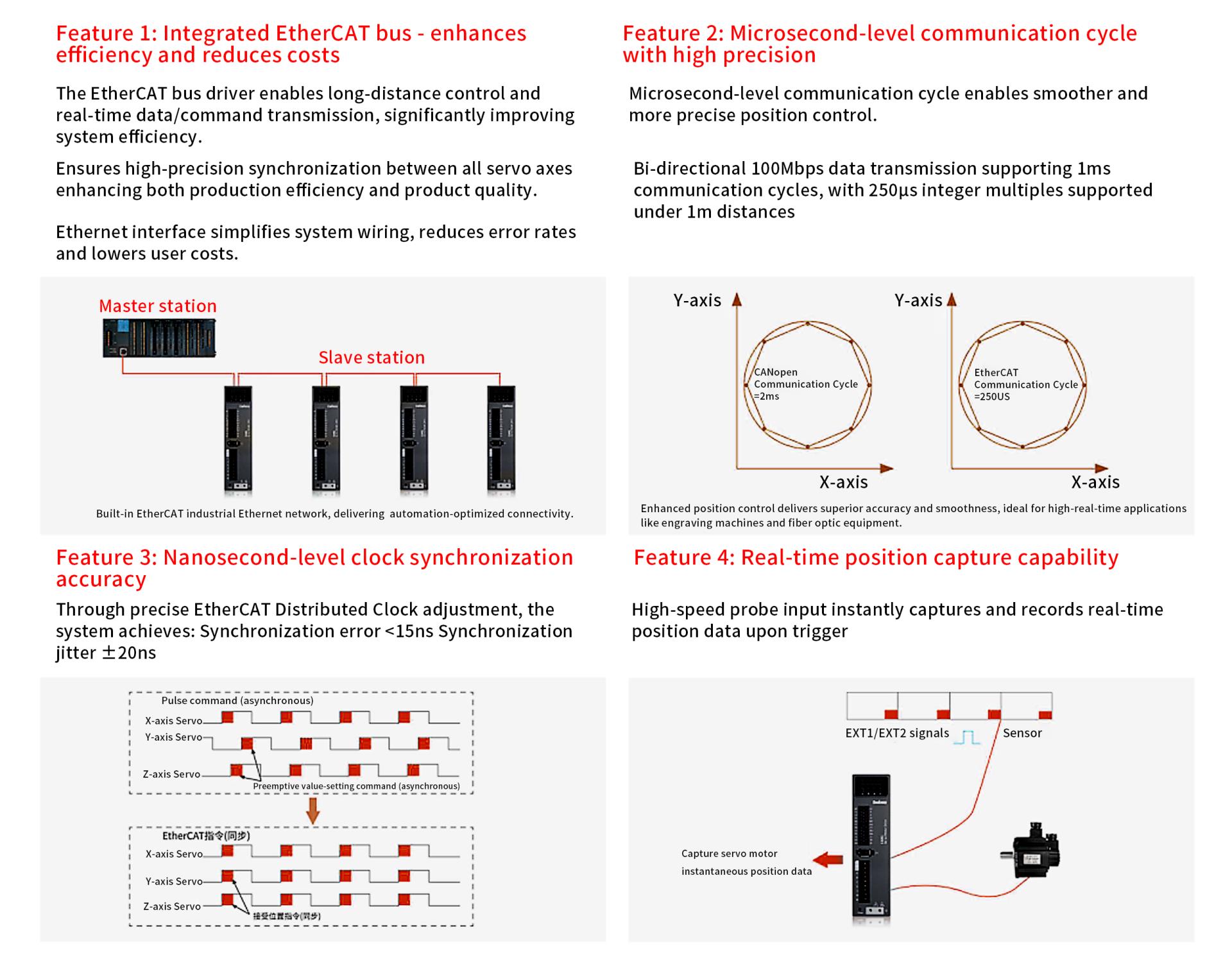

Feature 1:Integrated EtherCAT bus-enhancesefficiency and reduces costs
The EtherCAT bus driver enables long-distance control andreal-time data/command transmission,significantlyimprovingsystem efficiency.
Ensures high-precision synchronization between all servo axesenhancing both production efficiency and product quality.
Ethernetinterface simplifies system wiring, reduces error ratesand lowers user costs.
Feature 2:Microsecond-level communication cyclewith high precision
Microsecond-level communication cycle enables smoother andmore precise position control.
Bi-directional 100Mbps data transmission supporting lmscommunication cycles, with 250us integer multiples supportedunder lm distances.

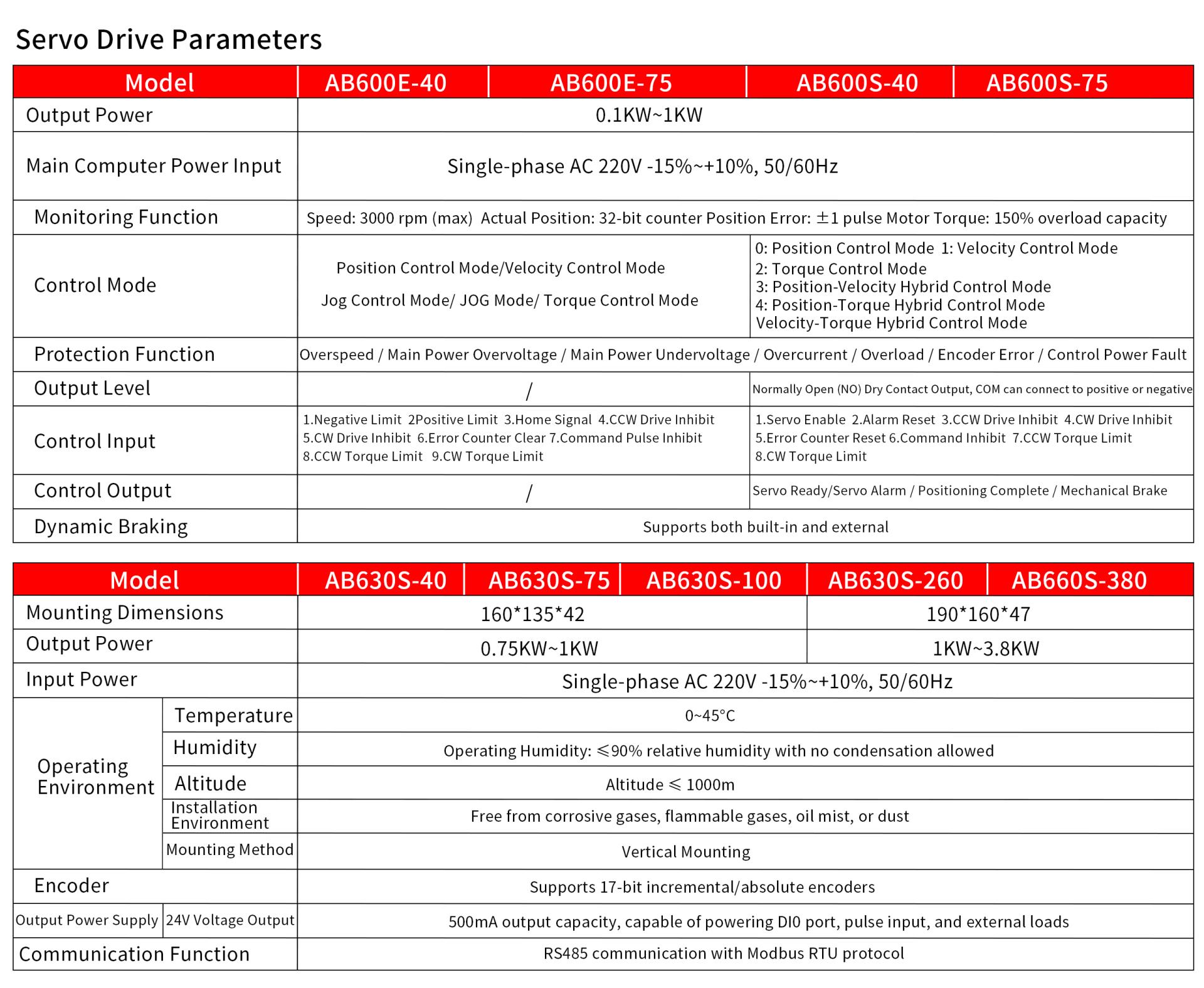

Servo Drive Parameters

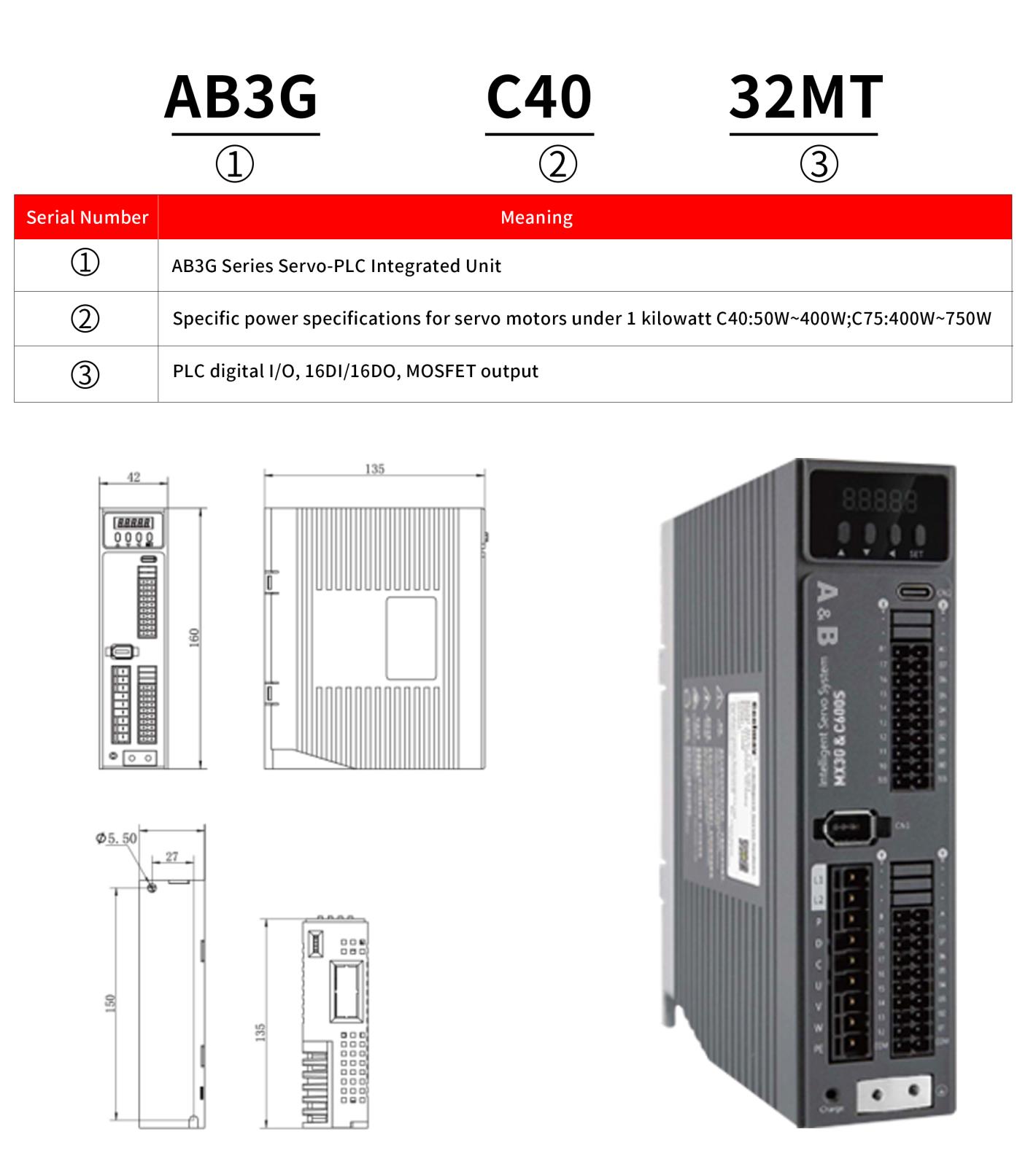

| Model | AB600E-40 | AB600E-75 | AB600S-40 | AB600S-75 |
| Output Power | 0.1KW~1KW | |||
| Main Computer Power input | Single-phase AC 220V-15%~+10%,50/60Hz | |||
| Monitoring Function | Speed: 3000 rpm (max) Actual Position: 32-bit counter Position Error: +1 pulse Motor Torque: 150% overload capacity | |||
| Control Mode | Position Control Mode/Velocity Control Mode Jog Control Mode/ J0G Mode/ Torque Control Mode | 0:Position Control Mode 1:Velocity Control Mode 2:ioro ue3: Position-Velocity Hybrid Control Mode 4: Position-Torque Hybrid Control ModeVelocity-Torque Hybrid Control Mode | ||
| Protection Function | Overspeed /Main Power Overvoltage /Main Power Undervoltage/Overcurrent /Overload /Encoder Error /Control Power Fault | |||
| Output Level | / | Normally Open (NO) Dry Contact Output, COM can connect to positive or negative | ||
| Control lnput | 1.Negative Limit 2Positive Limit 3.Home Signal 4.CCW Drive Inhibit 5.CW Drive Inhibit 6.Error Counter Clear 7.Command Pulse Inhibit 8.CCW Torque Limit 9.CW Torque Limit | 1.Servo Enable 2.Alarm Reset 3.CCW Drive Inhibit 4.CW Drive Inhibit 5.Error Counter Reset 6.Command inhibit 7.CCW Torque Limit 8.CW Torque Limit | ||
| Control Output | / | Servo Ready/Servo Alarm/Positioning Complete /Mechanical Brake | ||
| Dynamic Braking | Supports both built-in and external | |||
| Model | AB630S-40 | AB630S-75 | AB630S-100 | AB630S-260 | AB660S-380 | |
| Mounting Dimensions | 160*135*42 | 190*160*47 | ||||
| Output Power | 0.75KW~1KW | 1KW~3.8KW | ||||
| Input Power | Single-phase AC 220V-15%~+10%,50/60Hz | |||||
Operating Environment | Temperature | 0~45°C | ||||
| Humidity | Operating Humidity: <90% relative humidity with no condensation allowed | |||||
| Altitude | Altitude ≤1000m | |||||
| Installation Environment | Free from corrosive gases, flammable gases, oil mist, or dust | |||||
| Mounting Method | Vertical Mounting | |||||
| Encoder | Supports 17-bit incremental/absolute encoders | |||||
| Output Power Supply | 24V Voltage Output | 500mA output capacity, capable of powering Dl0 port, pulse input, and external loads | ||||
| Communication Function | RS485 communication with Modbus RTU protocol | |||||
