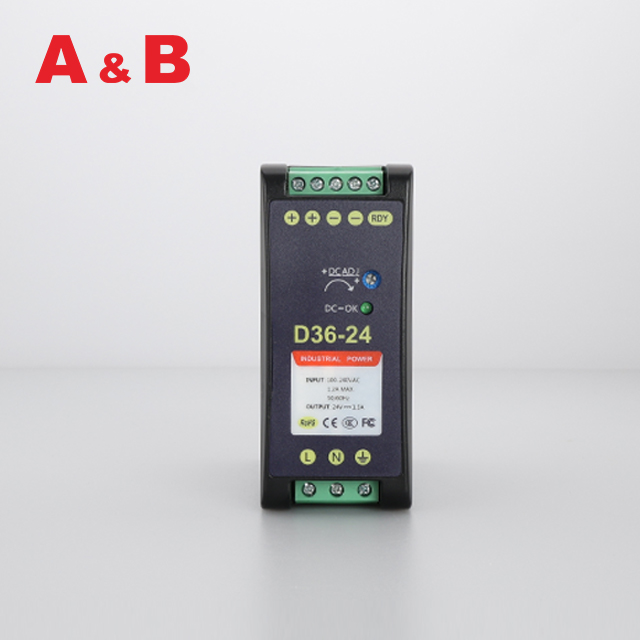

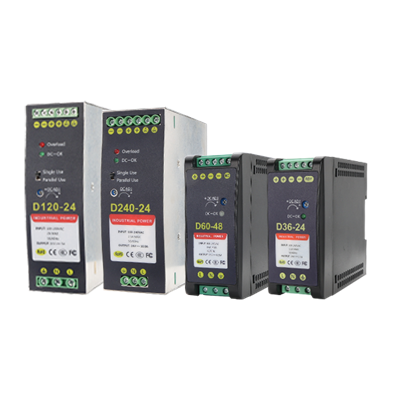

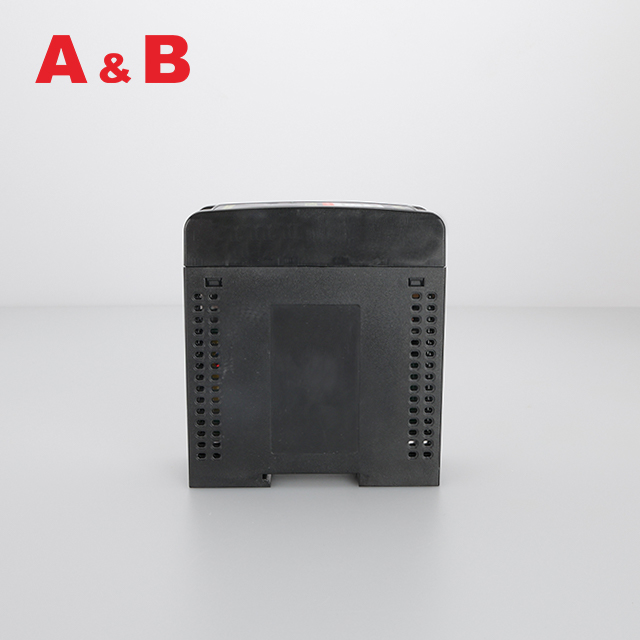

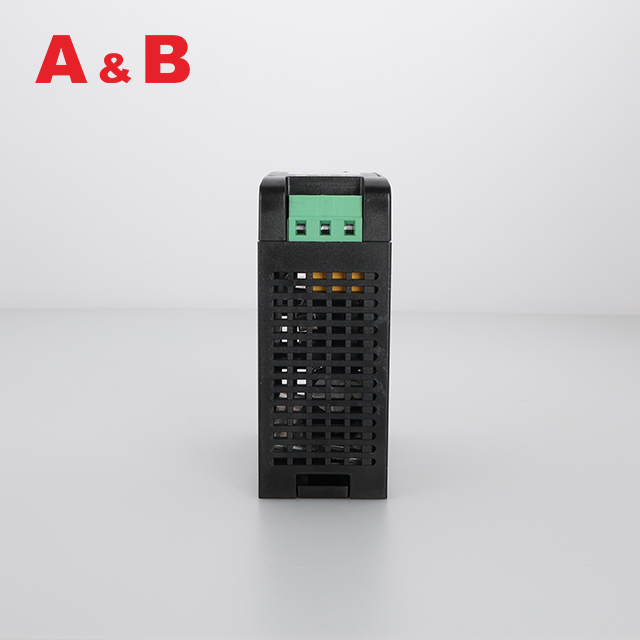

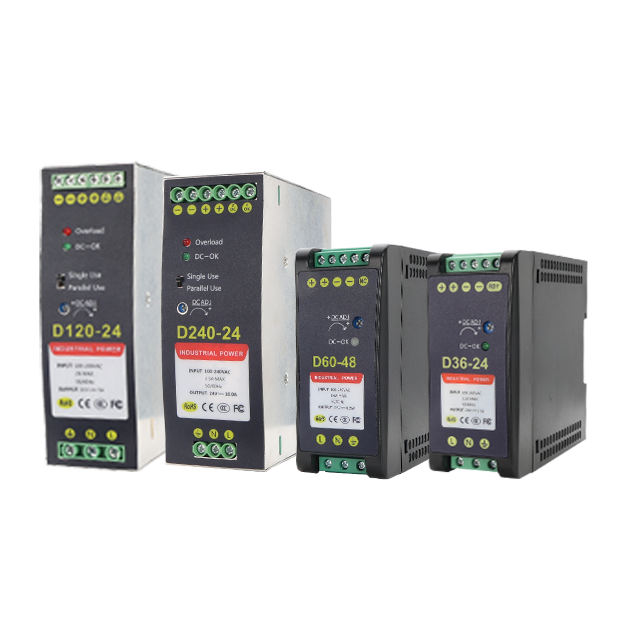

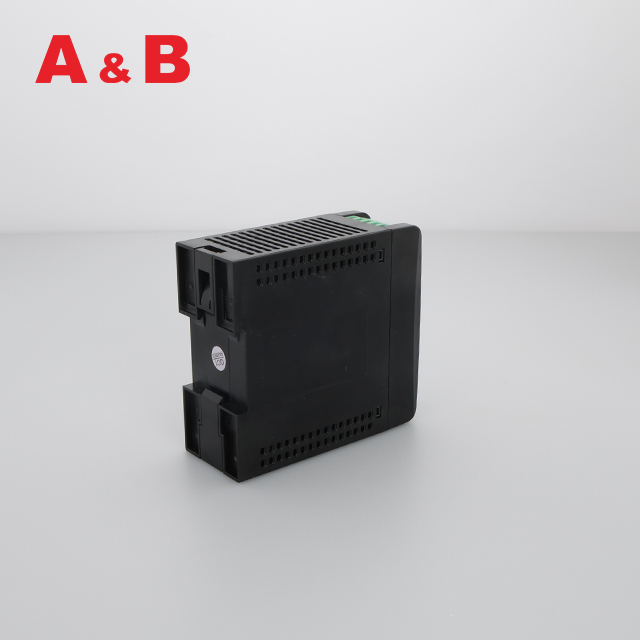

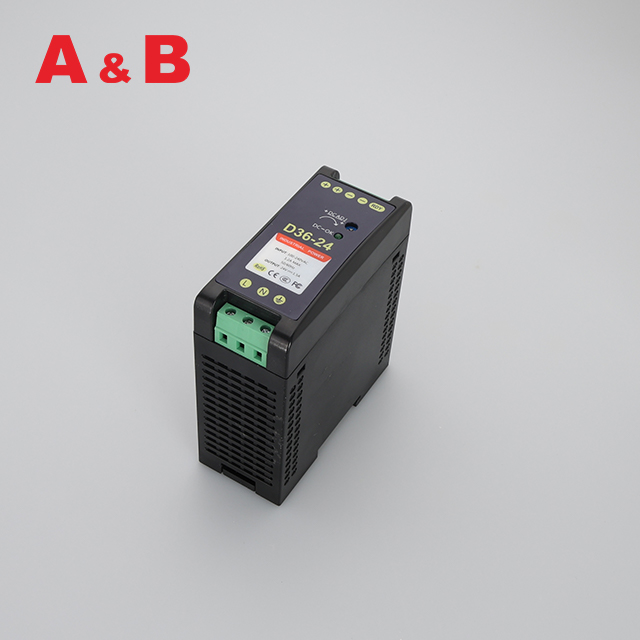

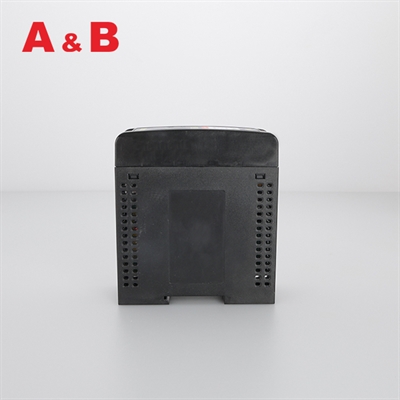

power supply

High efficiency,long life and high reliability.

LED indicator forpoweron.

100%full-loadburn-intest.

3yearswarranty.

Send inquiry
 Download Datesheet
DESCRIPTION
DOCUMENT
INSTALLATION INSTRUCTIONS

Regular output voltage:5V/12V/24V/36V/48V  ther output voltage could be customized IP20

Technical Parameters


ltem NoPowerInput VoltageOutput/Current


5V12V24V36V48Vpcpcs/Car ton
LRS-1515W100-240V3A1.25A0.63A0.42A0.31A0.18kg120
LRS-2525W100-240V5A2.08A1.04A0.70A0.52A0.18kg120
LRS-3535W100-240V7A3A1.5A1A0.8A0.24kg84
LRS-5050W100-240V10A4.2A2.1A1.4A1.1A0.24Kg84
LRS-6060W100-240V12A5A2.5A1.67A1.25A0.24Kg84
LRS-7575W100-240V15A6.3A3.2A2.1A1.6A0.26Kg84
LRS-100100W100-240V20A8.33A4.2A2.78A2.1A0.3Kg63
LRS-120120W 100-240V24A10A5A3.33A2.5A0.3Kg63
LRS-150150W100-240V30A12.5A6.25A4.2A3.2A0.38Kg48
LRS-200200W110V8220V switch40A16.7A8.3A5.56A4.2A0.69Kg25
LRS-250250W110V8220V switch45A20.83A10.42A6.94A5.21A0.75Kg25
LRS-350350W110V8220V switch60A29A14.6A9.7A7.3A0.75Kg25

Item NoPowerInput VoltageOutput/ CurrentWeight/pcpcs/ Carto
13.8V CH113.4V CH227.6V CH126.5V CH2
SC - 3535W100~240V2.0A0.5A1.0A0.3A0.4Kg
45
SC - 6060W100~240V4.0A0.35A2.0A0.25A0.4Kg45
SC - 120120W100~240V8A0.5A4A0.3A0.5Kg40

Item NoPowerInput VoltageOutput/ CurrentWeight / pcpes/ Cart
5V12V24V36V48V
BG-1010W100~240V2A0.83A0.42A0.28A0.21A0.12Kg126
BG-1515W100~240V3A1.25A0.63A0.41A0.31A0.22Kg126
BG-2020W100~240V4A1.67A0.83A0.55A0.42A0.22Kg100
BG-3030W100~240V6A2.5A1.25A0.83A0.63A0.24Kg100
BG-3535W100~240V7A3A1.5A1A0.73A0.24Kg100
BG-4545W100~240V9A3.75A1.88A1.25A0.94A0.24Kg100
BG-6060W100~240V12A5A2.5A1.67A1.25A0.55Kg32
BG-8080W100~240V16A6.67A3.33A2.22A1.67A0.88Kg24
BG-100100W100~240V20A8.5A4.3A2.78A2.1A0.88Kg24
BG-120120W100~240V24A10A5A3.33A2.5A0.88Kg24
BG-150150W110V or 220V30A12.5A6.2A4.17A3.12A1.3Kg16
BG-200200W110V or 220V40A16.7A8.33A5.55A4.17A1.2Kg16
BG-250250W110V or 220V-20.83A10.42A6.95A5.21A1.6Kg12
