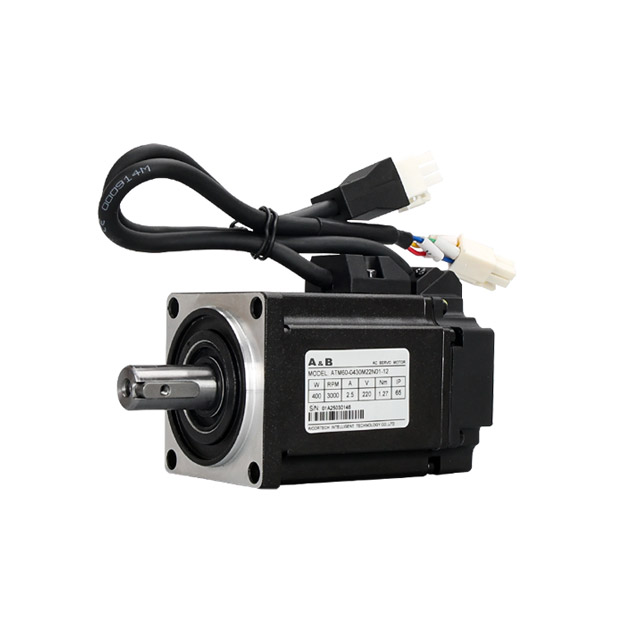

The rotor of the Aicortech servo motor is made of high-performance rare earth permanent magnet material, withhigh power density, excellent torgue characteristics, low inertia, good dynamic performance, and strong overloadcapacity.And it adopts a three-phase sine wave design, with good low-speed smooth characteristics and extremelylow torque ripple. it supports optional photoelectric encoders (incremental or absolute) and rotary variable voltageencoders, The servo motor has achieved F-level insulation and IP65 protection level, with built-in temperatureorotector that can adapt to harsh usage environments, At the same time, it has flexible installation methods and abeautifulappearance.

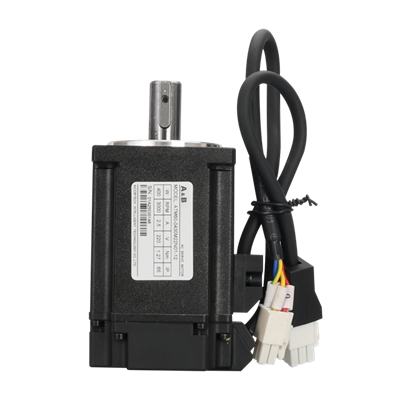

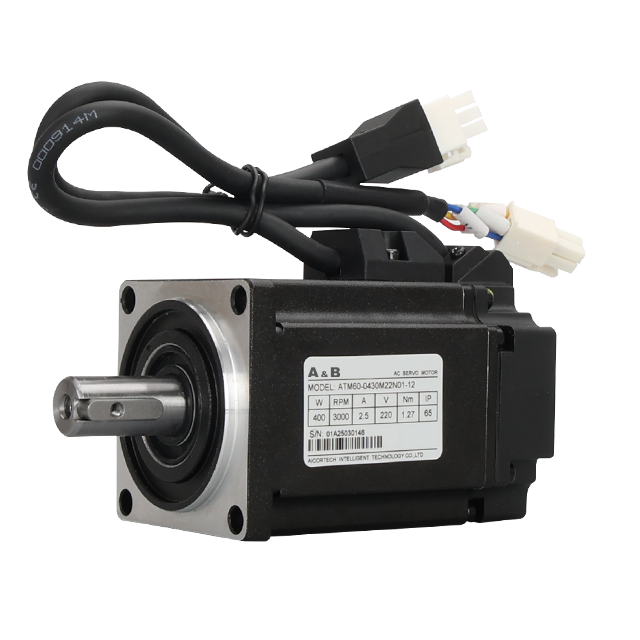

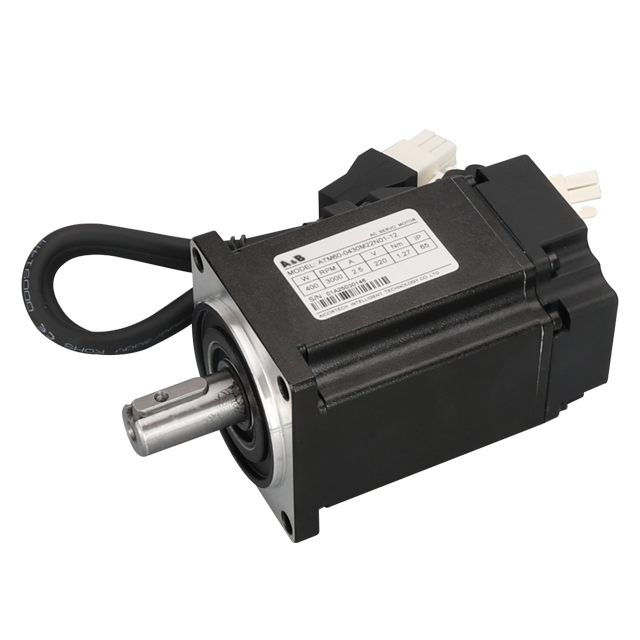

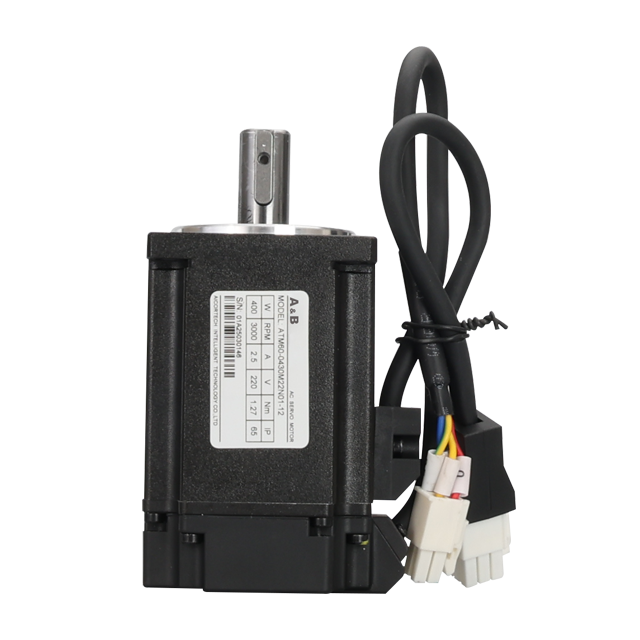

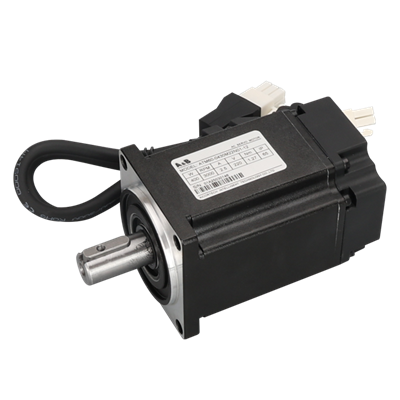

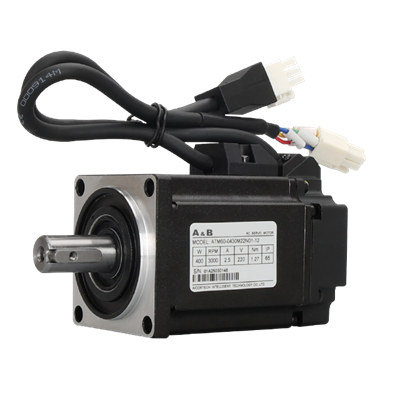

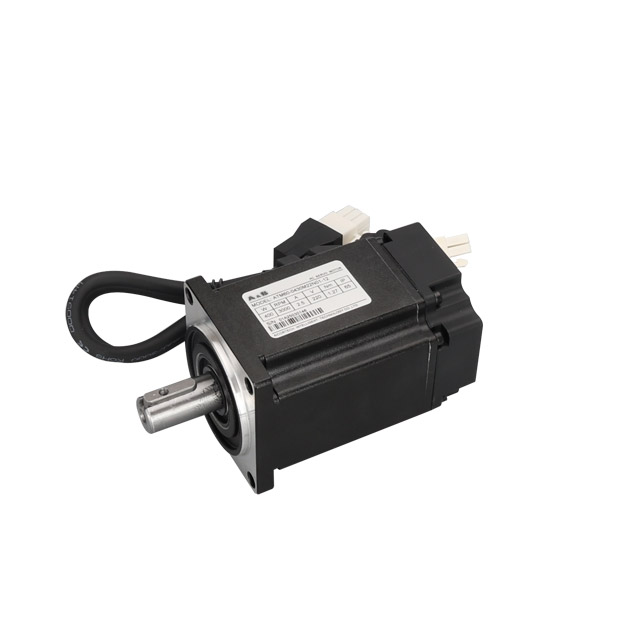

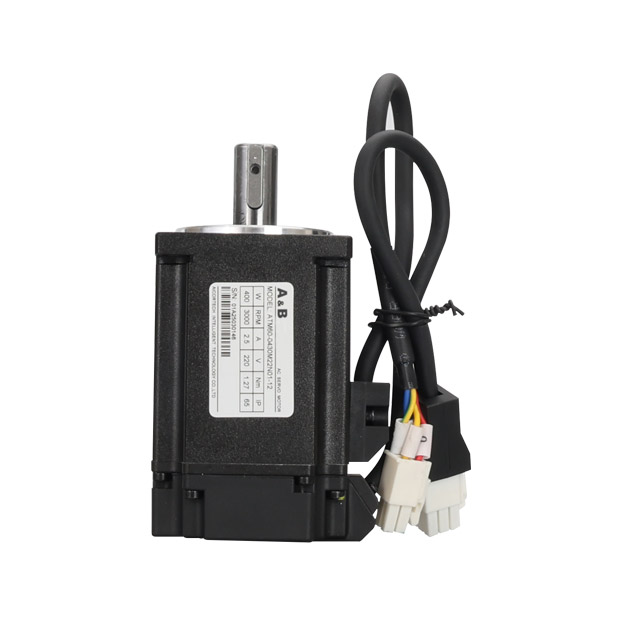

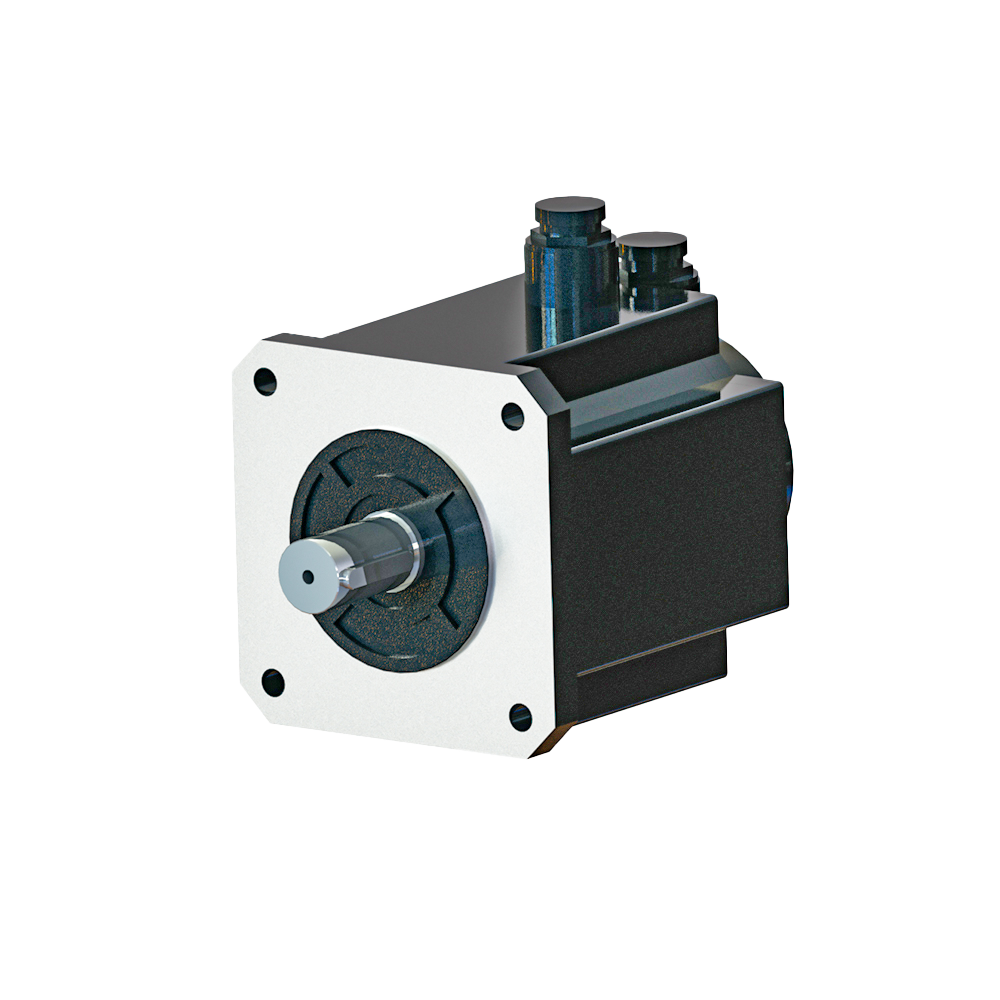

Servo Motor


The rotor of the Aicortech servo motor is made of high-performance rare earth permanent magnet

matenial. withhigh power density, excelent torquecharacteristics, low inertia, good dynamic

performance, and strong overloadcapacity.And it adopts a three-phase sine wave design, with good low-speedsmooth

characteristics and extremellow torque ripple. it supports optional photoelectnic encoders (incremental or absolute)

and rotary variablevoltageencoders, The seno motor

has achieved F-evel inswlalion and IP65 prptection level. with builtin temperatureprotector that can adaot to halshusage

environments, At the same time, it has flexible installation methods and abeautifulappearance.

Performance characteristics

High power density, wide speed range, and strong parameter compatibility.

Rated voltage AC220V/AC380V.

The transfer adopts high-performance rare earth permanent magnet materials, which are

energy-savingand durable.

Has good smoothness characteristics and extremely low torque ripple.

Smallinertia,strongoverload capacity,and good stability.

Achieve F-level insulation, IP65 high protection level, suitable for various harsh environments.

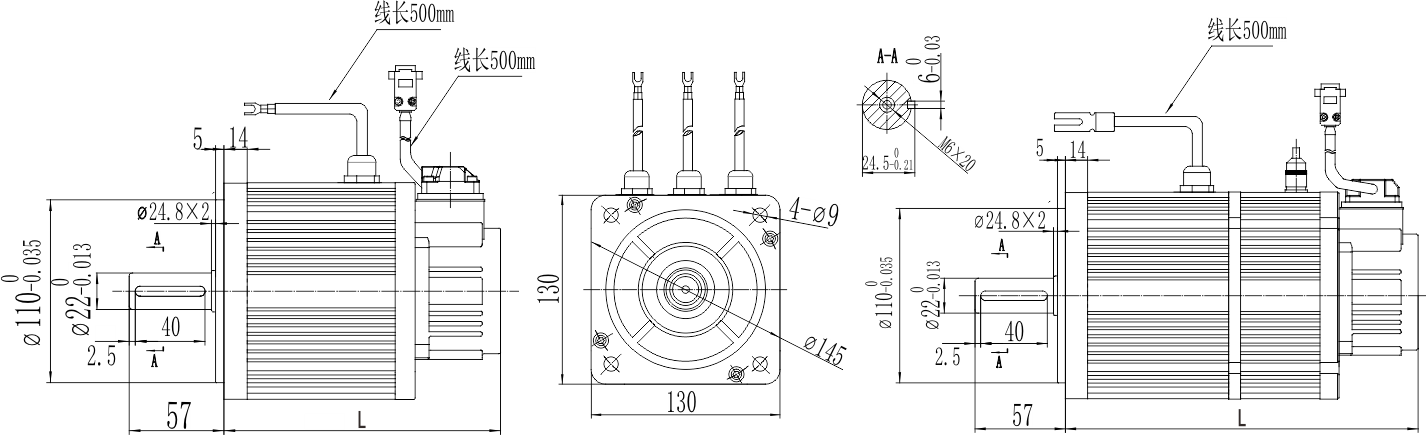

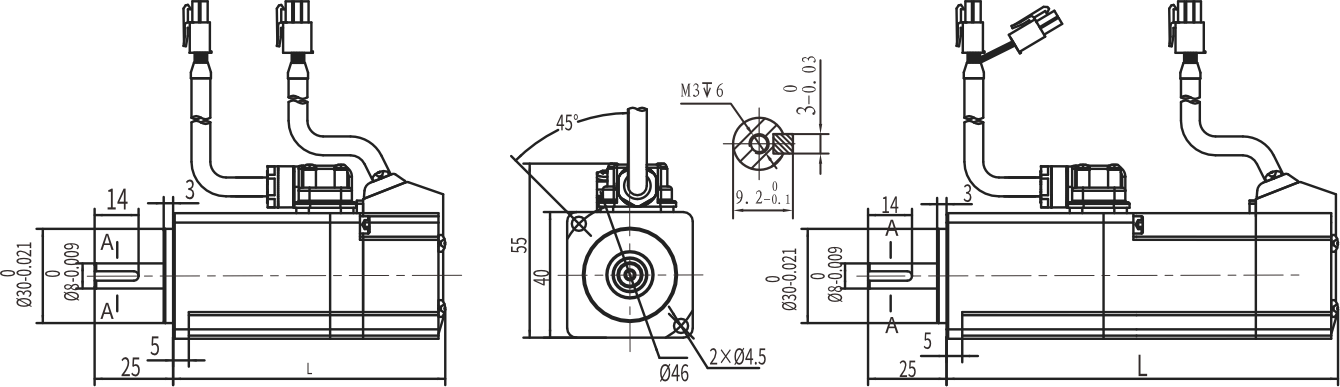

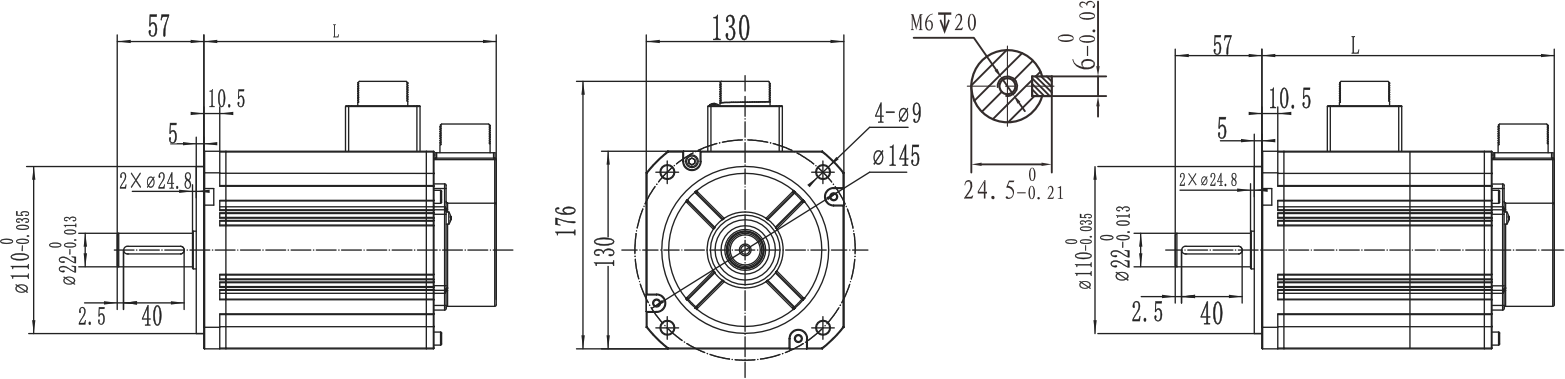

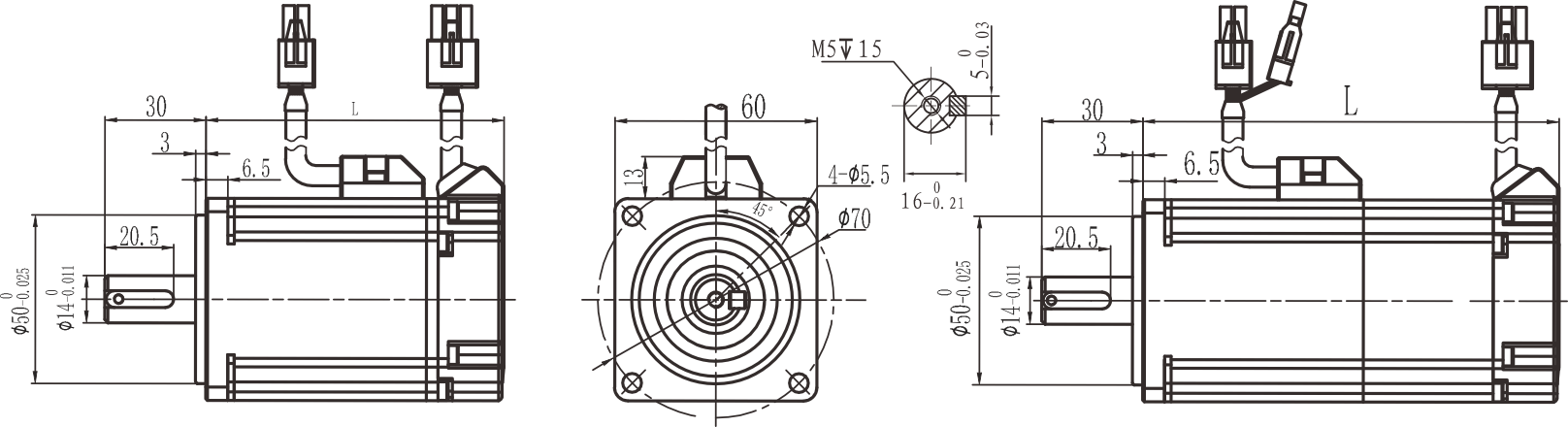

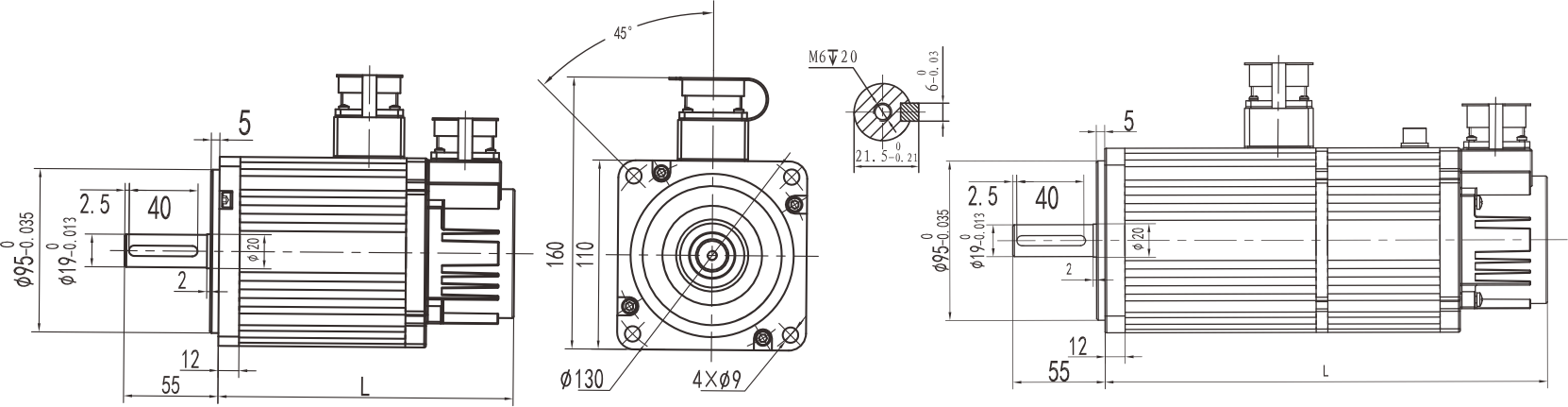

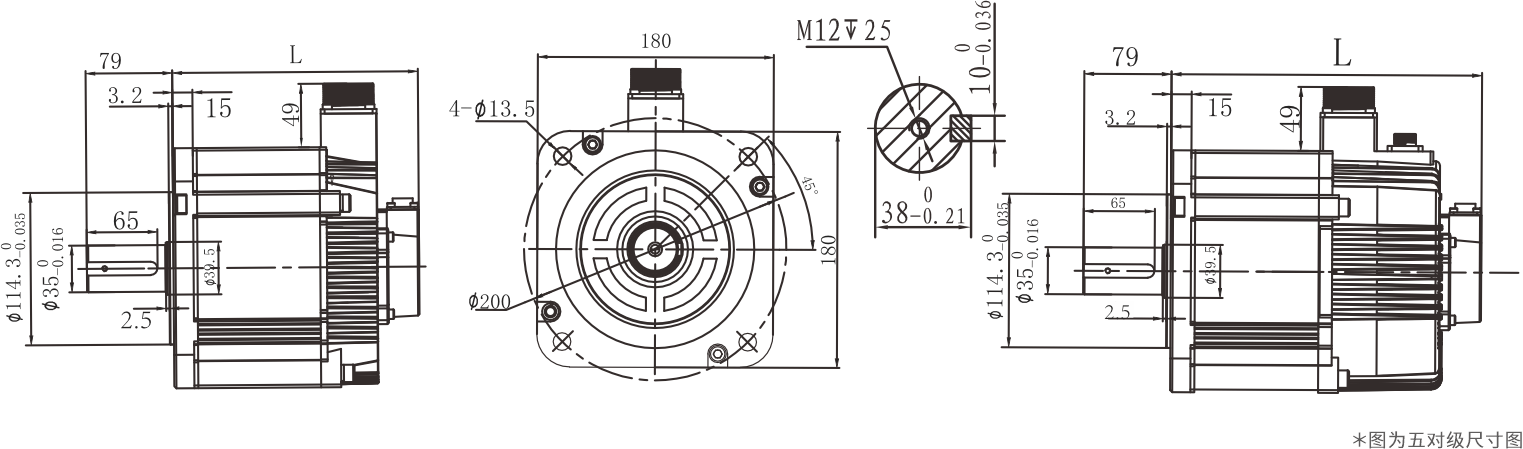

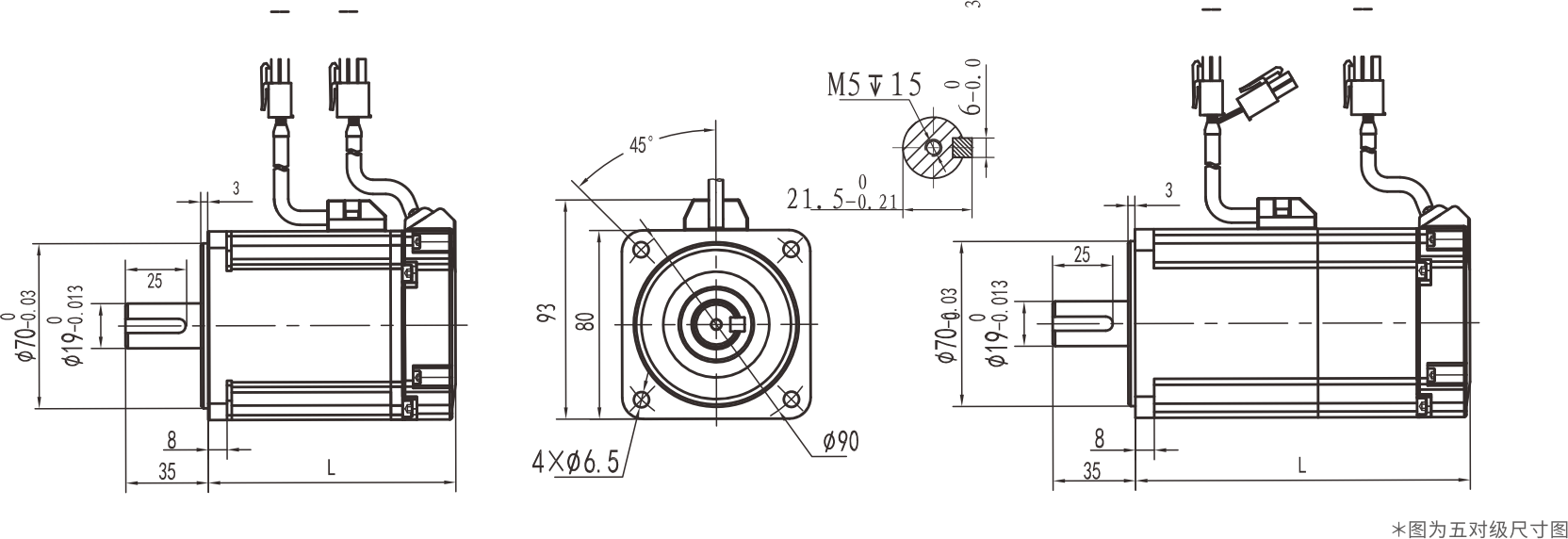

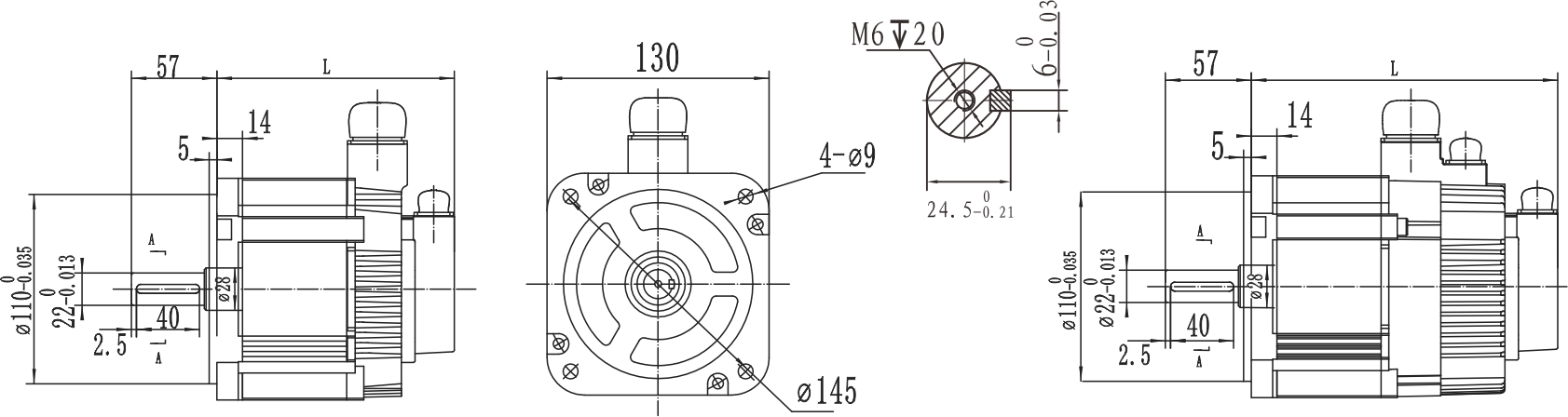

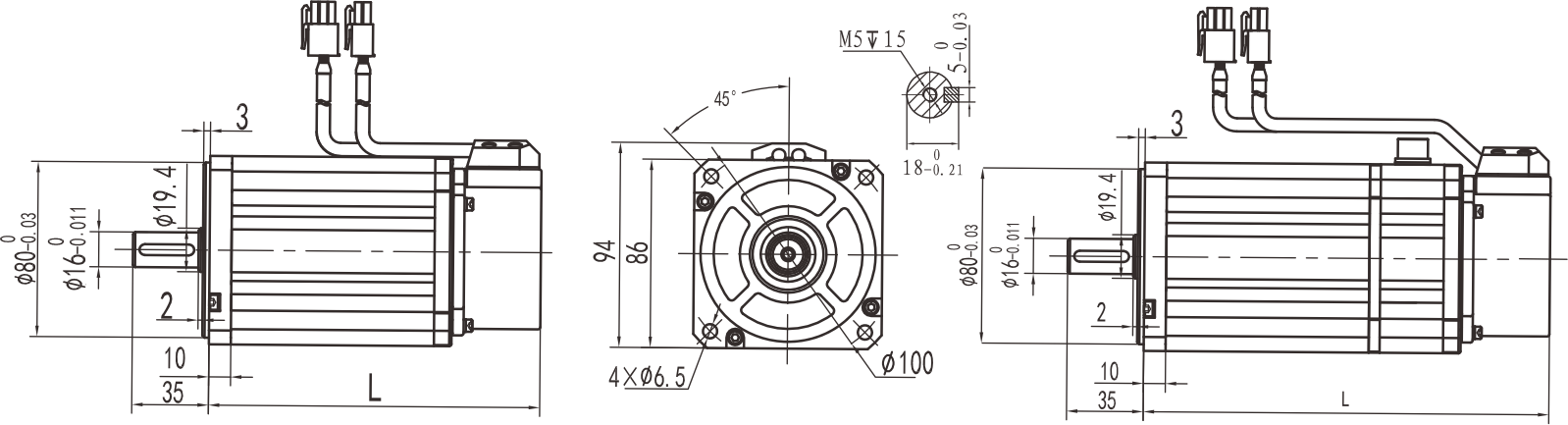

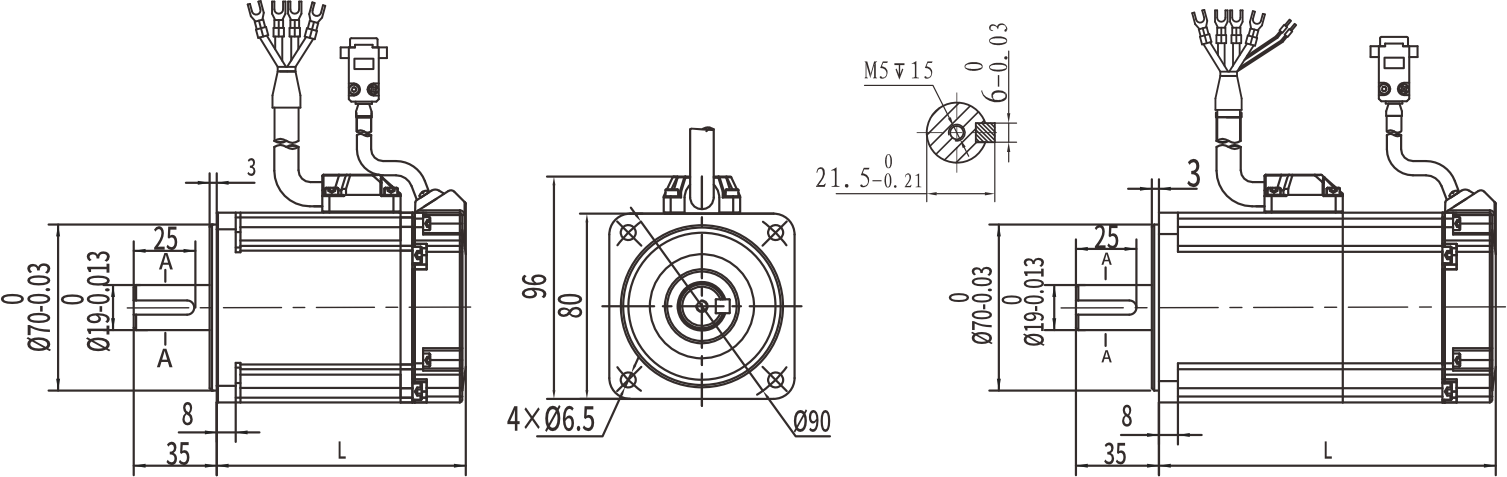

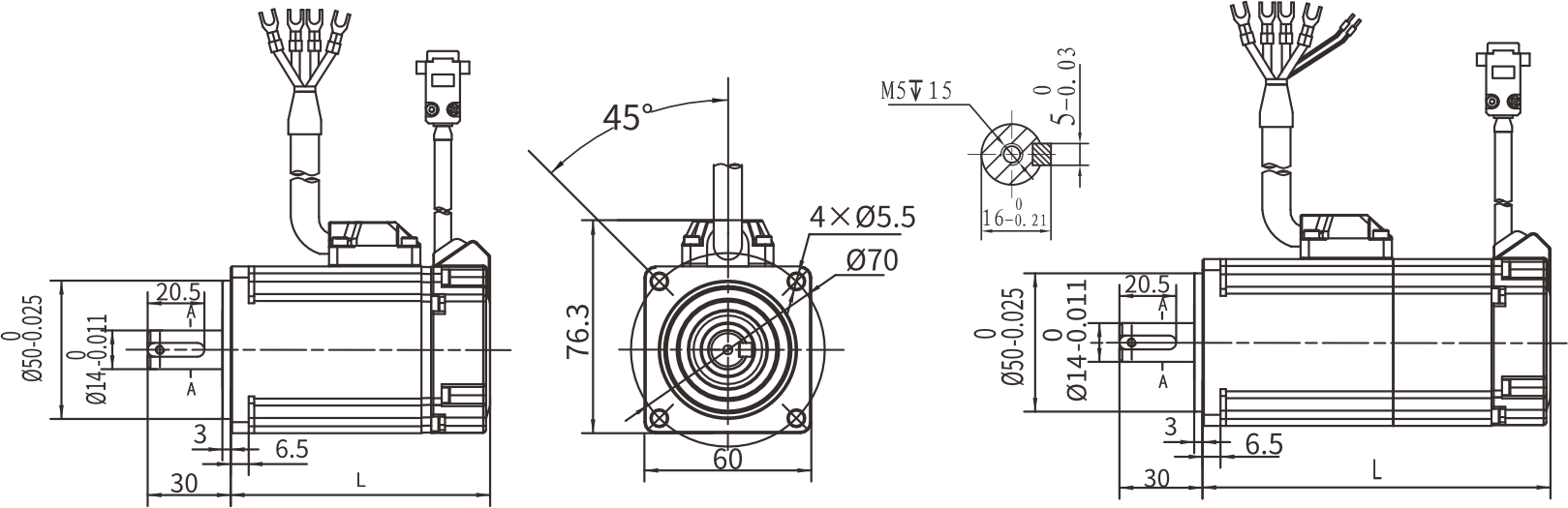

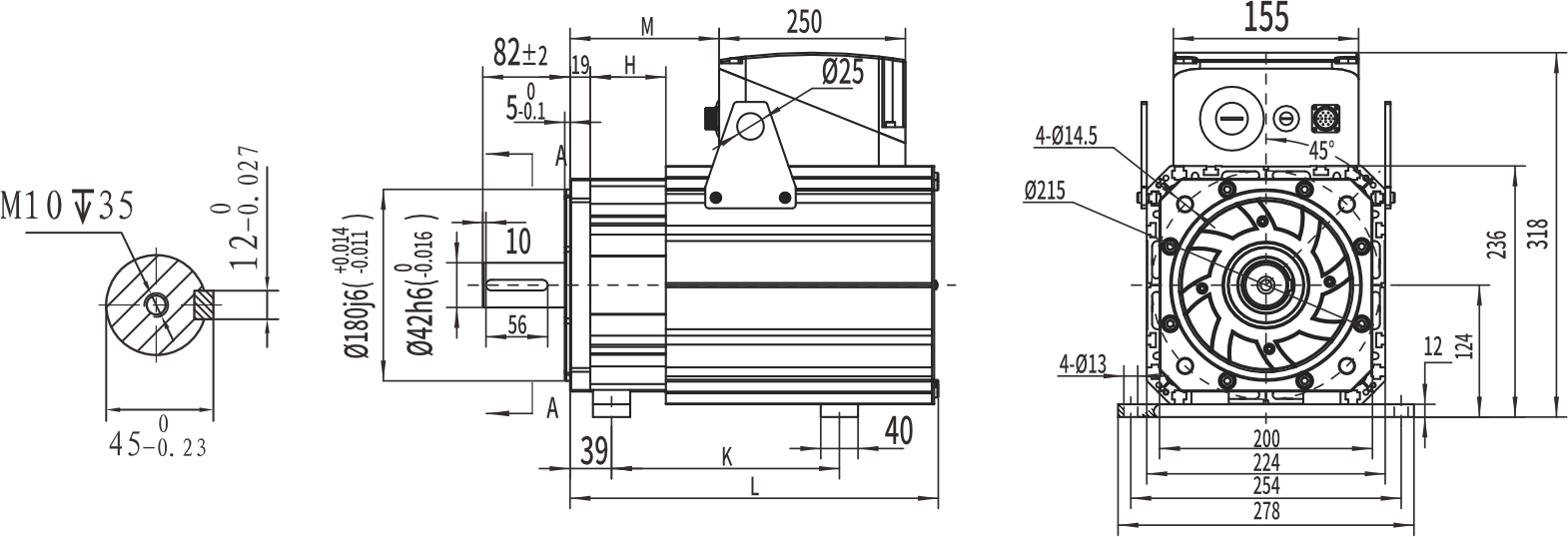

Flange

AC servo motor

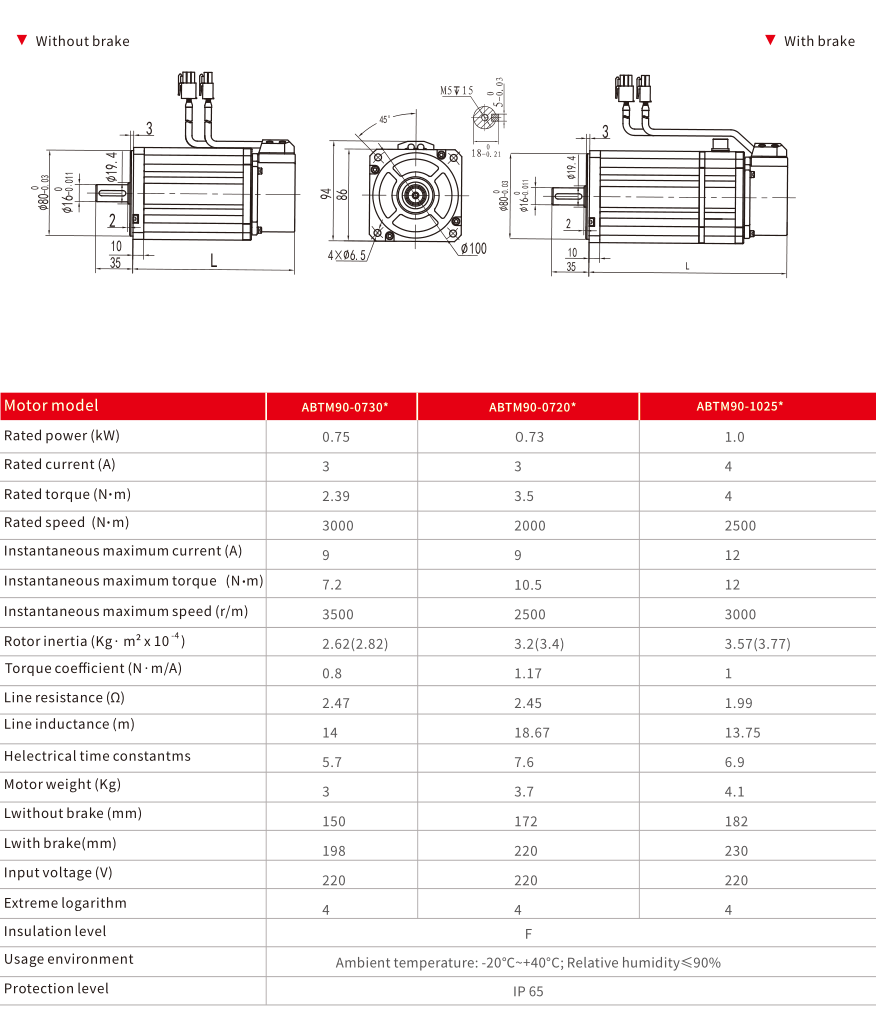

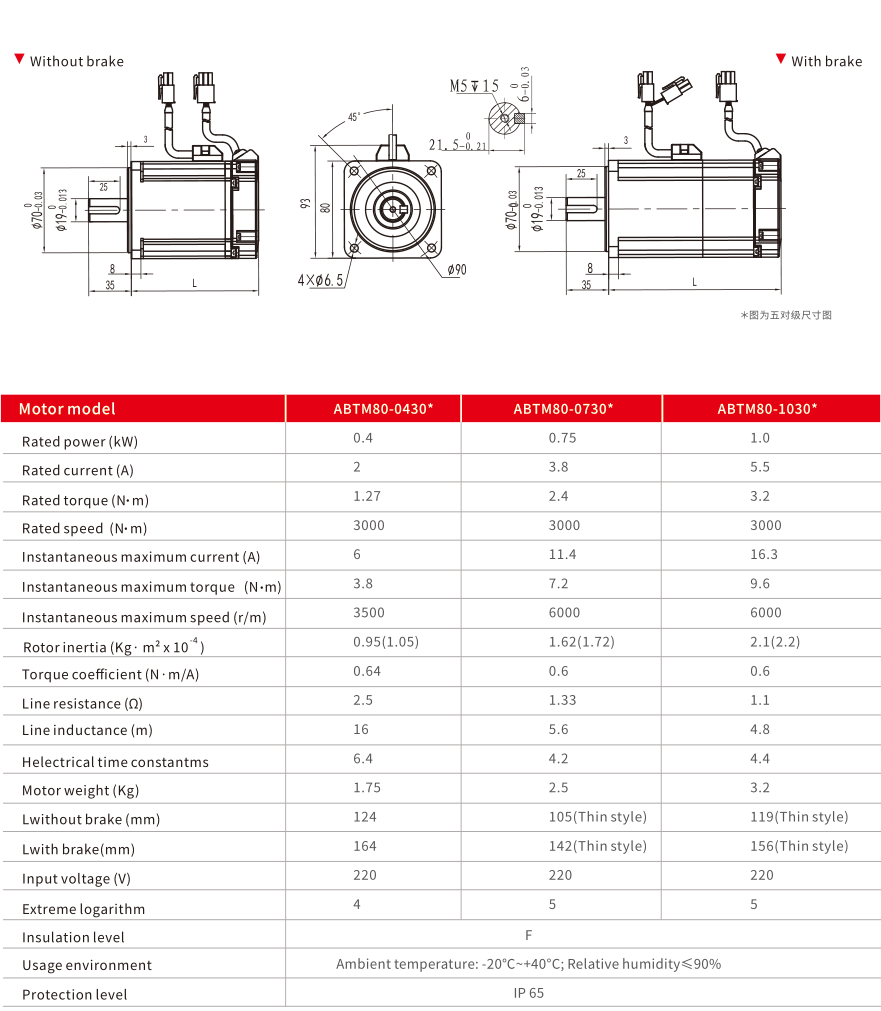

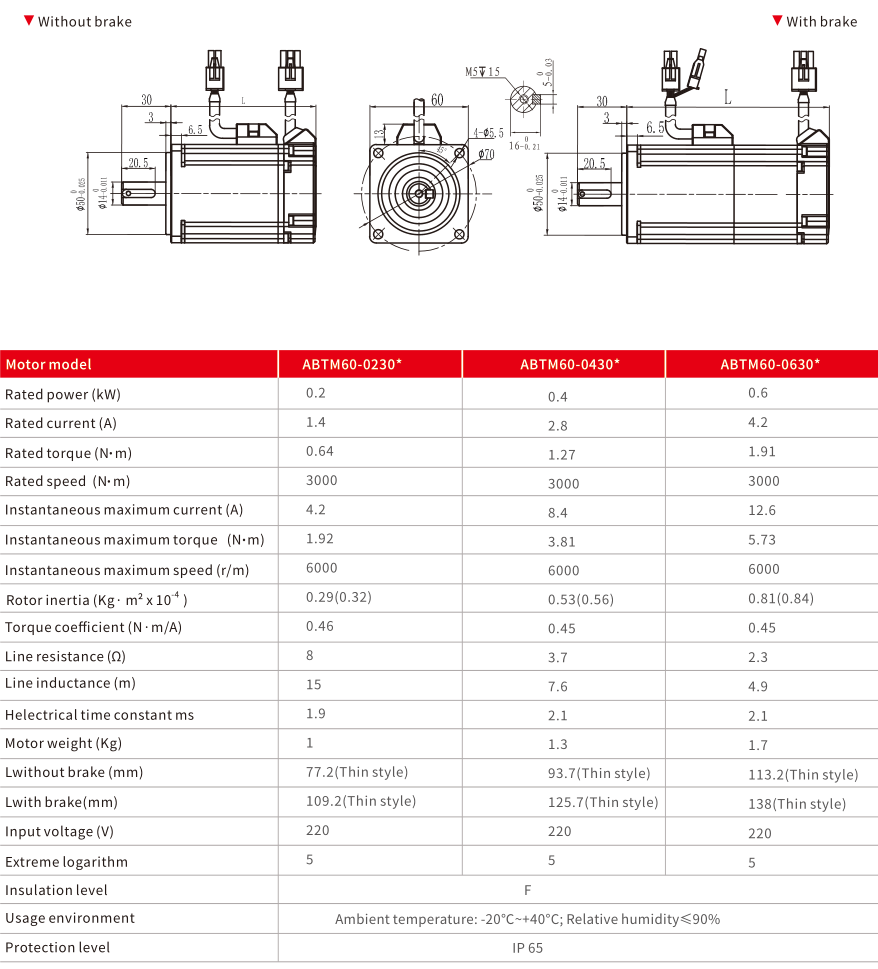

Motor model	ABTM60-0230	ABTM80-0430	ABTM90-0730	ABTM110-0630	ABTM130-0815 220V	ABTM130-1215 380V	ABTM180	ABTM200-10520
Motor power (KW)	0.2	0.4	0.75	0.6	0.85	1.6	2.7	10.5
Rated current (A)	1.4	2	3	2.5	6.9	6	10.5	19.6
Rated torque (N·m)	0.64	1.27	2.39	2	5.39	8.34	17.2	50
Rated speed (N·m)	3000	3000	3000	3000	1500	1500	1500	2000
Instantaneous maximum current(A)	4.2	6	9	7.5	20.7	18	31.5	48.3
Instantaneous maximum torque (N·m)	1.92	3.8	7.2	6	16.17	25.02	51.6	123
Instantaneous maximum speed (r/m)	6000	3500	3500	3500	3000	3000	1650	2500
Rotorinertia kg m² x 10^-4	0.29(0.32)	0.95（1.05）	2.36（2.82）	4（4.2）	10.9	16.9(18.13)	56.1	98(118)
Torque coefficient(N·m/A)	0.46	0.64	0.8	0.8	0.78	1.39	1.64	2.6
Line resistance (Ω)	8	2.5	2.47	3.13	1	1.54	7.3	0.47
Line inductance(m)	15	16	14	13.1	5	10.5	9.9	11
Electricaltime constant(ms)	1.9	6.4	5.7	4.2	5	6.8	15.4	23.4
Motor weight (Kg)	1	1.75	3	3.8	5.4	7.2	9.9	45.2
L Without brake (mm)	77.2(Thin style)	124	150	159	135	152.5	15.4	381/285
L With brake(mm)	109.2(Thin style)	164	198	233	187	204.5	197	65/84
Input voltage (V)	220	220	220	220	220	380	220	380
Extremelogarithm	5	4	4	4	5	5	4	4
Insulation level	F
Usage environment	Ambient temperature:-20°C~+40°C; Relative humidity<90%
Protection level	IP65

DC servo motor

Motor model	ABTDM40-E00530	ABTDM60-E0230	ABTDM80-F0730	ABTDM130
Motor power (KW)	0.05	0.2	0.75	1.0
Rated voltage (V)	24	24	48	48
Rated current(A)	3.5	12	20	28
Rated torque(N·m)	0.16	0.64	2.4	4
Maximum torque(N·m)	0.32	1.91	4.8	8
Rated speed (r/m)	3000	3000	3000	2500
Rotor inertia (Kg ·m²)	0.35x10^-4	0.29x10^-4	1.62x10^-4	9.6x10^-4
Torque coefficient (N .m/A)	0.05	0.053	0.12	0.14
Line resistance (Ω)	1.06	0.17	0.08	0.056
Line inductance (Mh)	0.86	0.27	0.27	0.25
Electricaltime constant(ms)	0.8	1.6	3.4	4.5
Motor weight (Kg)	0.4	1.0	2.5	5.5
L without brake (mm)	68.5	77.2(Thin style)	105	166
L with brake(mm)	101.5	109.2(Thin style)	142	244
Extreme logarithm	5			4
Insulation level	F
Usage environment	Ambient temperature:-20°C~+40°C; Relative humidity<90%
Protection level	IP65
