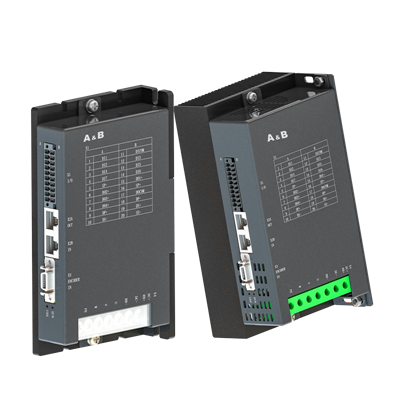

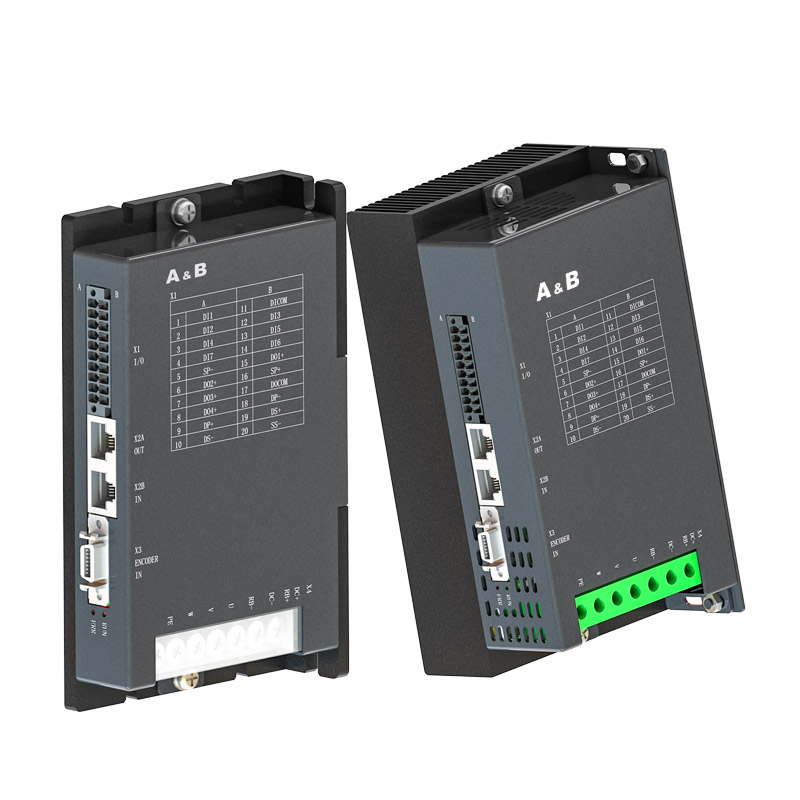

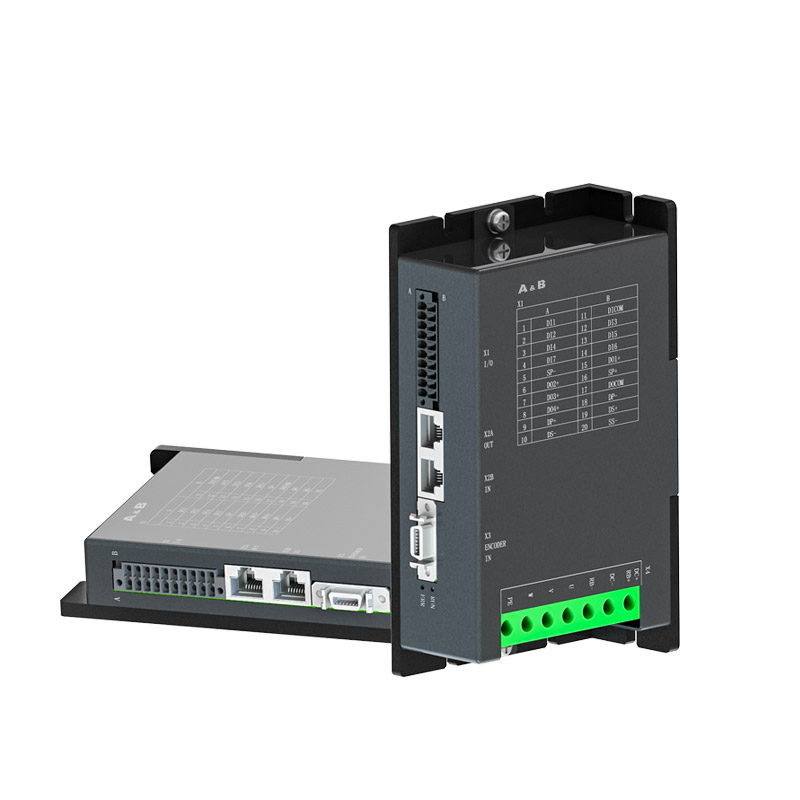

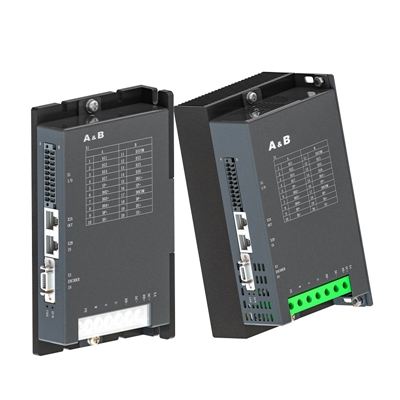

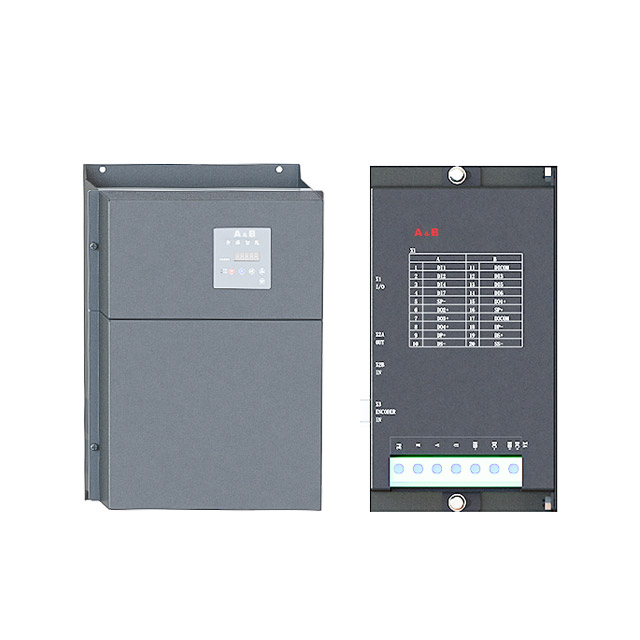

The model numbers are: ABATS60-05 ABATS60-15 ABATS60-25 ABATS60-40 ABATS60-50
Our power options are: ABATS60-05 : 12V/24V/36V/48V, ABS60-15 : 24V/36V/48V, ABATS60-25 : 24V/36V/48V, ABATS60-40 : 24V/36V/48V, ABATS60-50 : 24V/36V/48V
Performancecharacteristics Fullydigitalcircuitproducts. Coveringawiderangeofpower. Coveringawidevoltageinputrange. Supportthenetworkedoperationofmultipleservodrives Enhanceenvironmentadaptability,upto-20°C~+55°C.
Structuraloptimizationdesign,compactlayout. Wecanprovidecustomizedservicesaccordingtouserneedstomeetspecialoccasionsandmorecomplexfunctionalrequirements. Integratemultiplecontrolstrategiesandprovideversatileuppercomputersoftware
Positioningtimewithin3.5ms,positioning accuracy ± 1 pulse.
Input voltage (V):12-48V
Supports multiple communication methods such as Modbus, EtherCAT, CANopen, etc

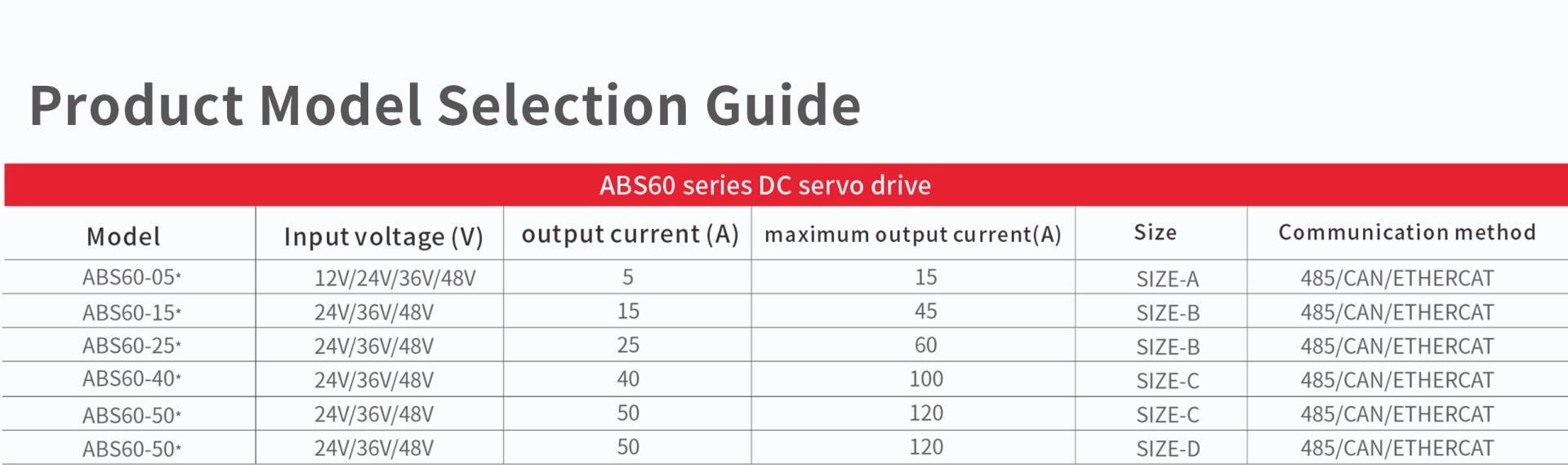

| ABS60 series DC servo drive | |||||

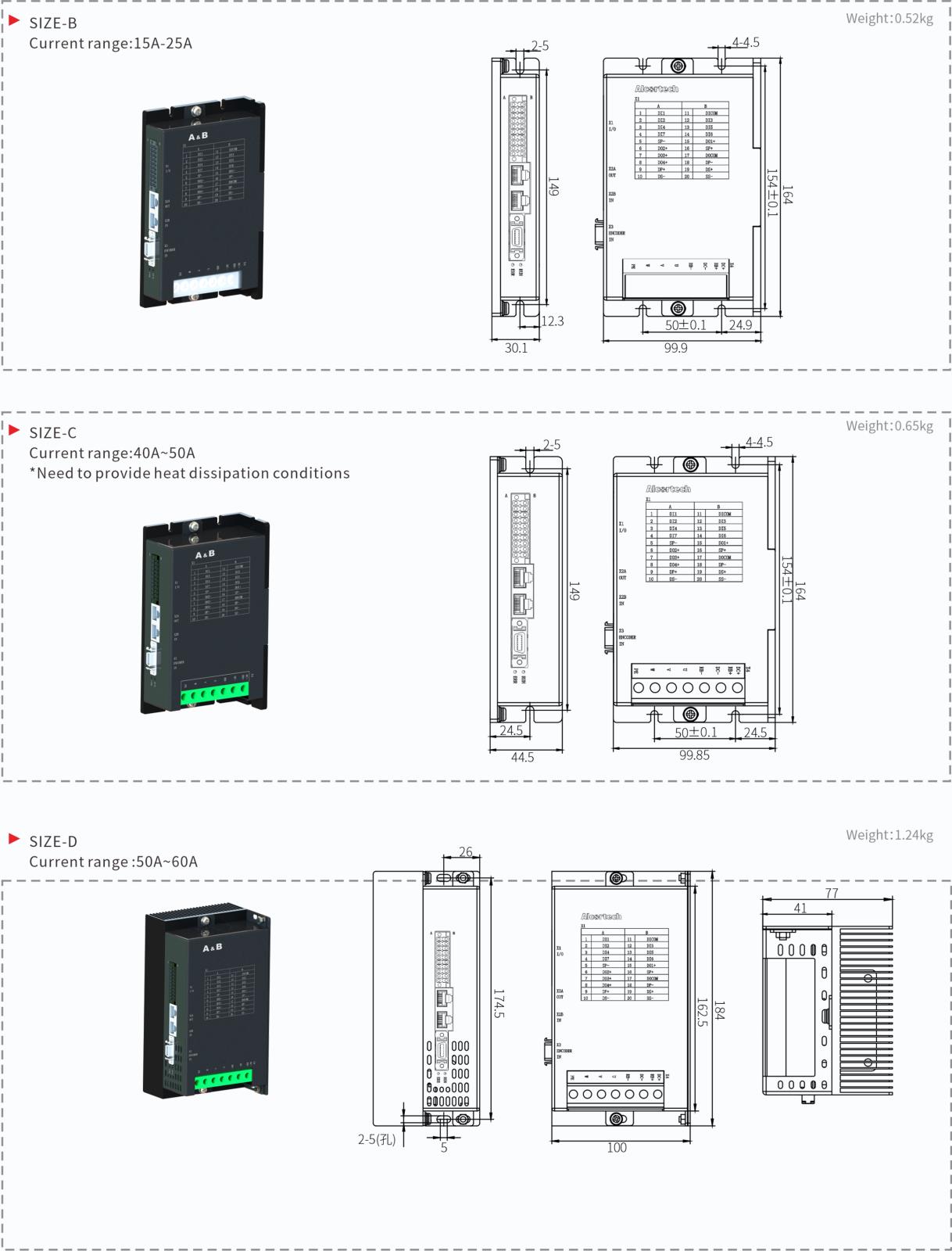

| Model | lnput voltage (V) | output current (A) | maximum output current (A) | Size | Communication method |
| ABATS60-05 | 12V/24V/36/48V | 5 | 15 | SlZE-A | 485/CAN/ETHERCAT |
| ABATS60-15 | 24V/36/48V | 15 | 45 | SlZE-B | |
| ABATS60-25 | 24V/36/48V | 25 | 60 | SlZE-B | |
| ABATS60-40 | 24V/36/48V | 40 | 100 | SlZE-C | |
| ABATS60-50 | 24V/36/48V | 50 | 120 | SlZE-D | |
