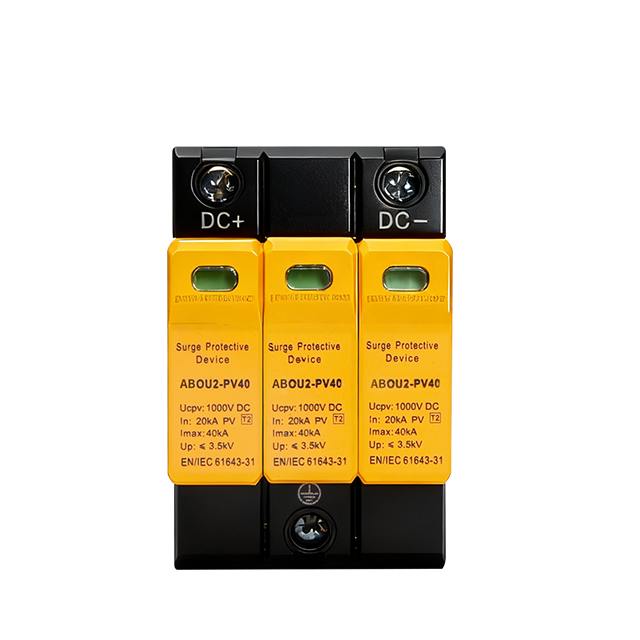

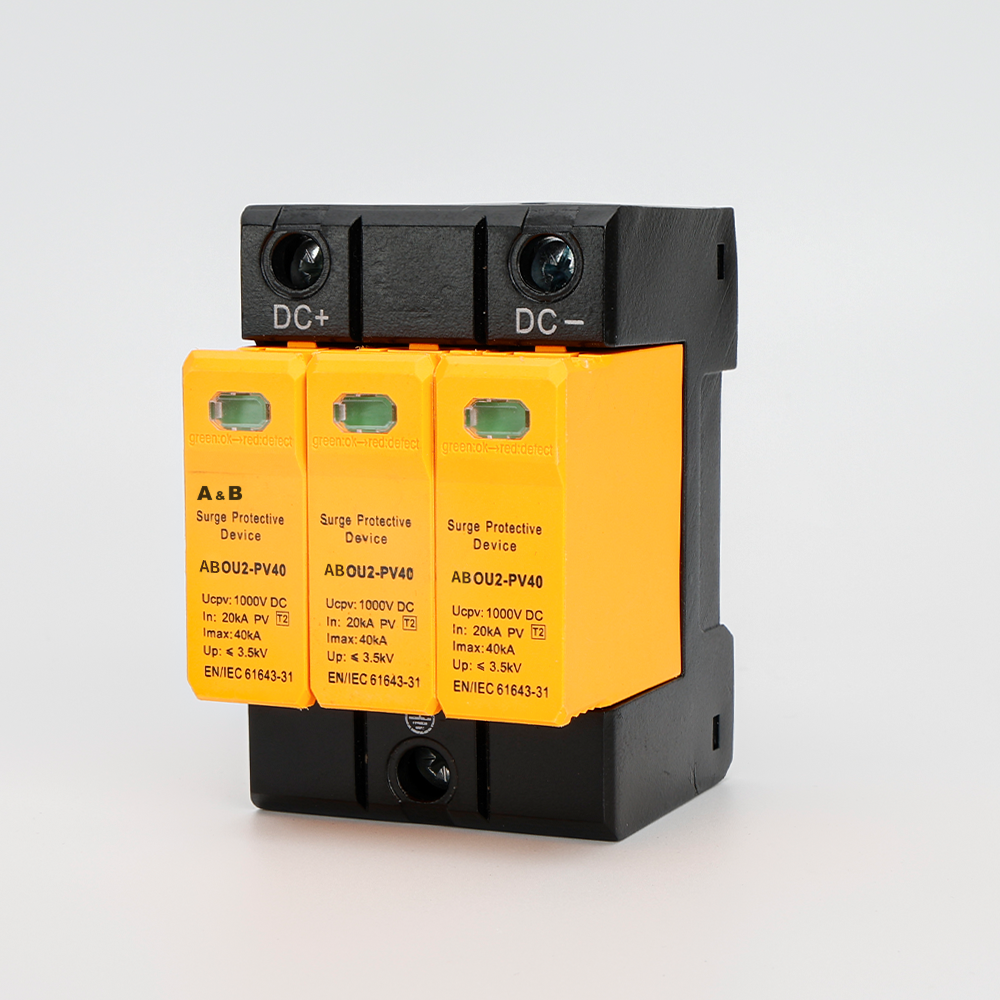

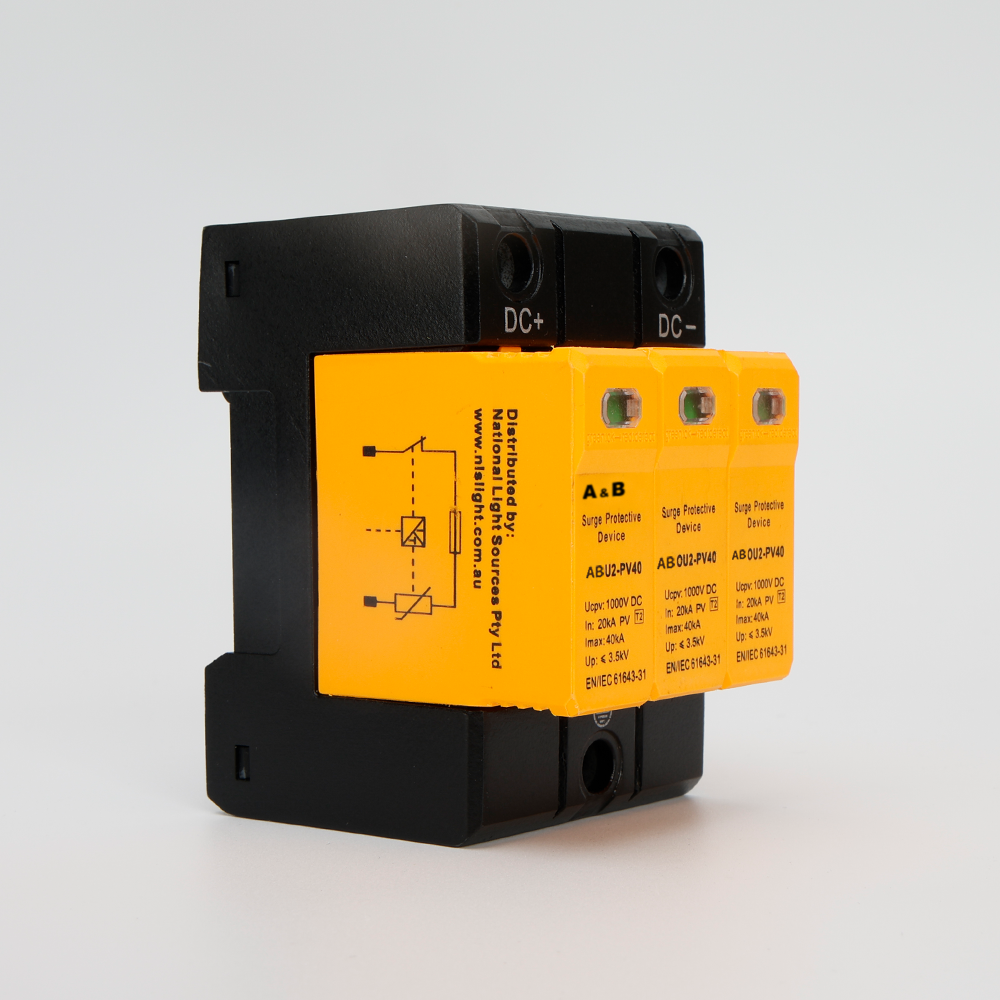

ABOD-..(FM):Modular surge arrester with integrated
backup device foruse in PVsystems
High reiability due to "Thermo Dynamic Control"SPD monito -ring device.
Multifunctionalterminals for connecting conductors and busbars
| TYPE | ABOD-80Y5 |
| SPD classification accordingto EN61643-31 | Type2 |
| SPD classification accordingto IEC61643-31 | Ciass I1 |
| Max.Continuous operating d.c.Voltage[Ucpv] | 500Vdc |
| Nominal discharge current(8/20μs)[ln] | 20kA |
| Max.discharge current(8/20μs)[lmax] | 40kA |
| Voltage protection level[Up][+,→PE] | ≤2.3kV |
| Voltage protection level at 5kA[Up][+,-→PE] | ≤1.2kV |
| Response time [ta]. | 25ns |
| Max.mains-side overcurrent protection | 125A gL/gG |
| Operating temperature range[Tu] | -40℃~+80℃ |
| Operating statel/fault indication | Green/red |
| Cross-sectional area(min.) | 10mm solid/flexible |
| Cross-sectional area(max.) | 35mm²solid/25mm flexible |
| For mounting on | 35mmDIN rail acc.ToEN60715 |
| Enclosure material | PBT/PA66,UL94VO |
| Place ofinstallation | indoor |
| Degrees of protection byenclosure | Ip20.To IEC 60529/EN 60529 |
| Approvals | IEC61643-31,EN61643-31,CE,CB,TUV |
| Switching capacity a.c. | 250V/3A |
