Work environment
1.Surrounding temperature:-25C~+55℃;
2.Airrelativehumidity:≤85%:
3.lt canbe normally work under following condition:Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h;
4.PollutiongradeIll,installation sortisIll,protectiongradeisuptoI5;
5.Altitude:≤2000m.

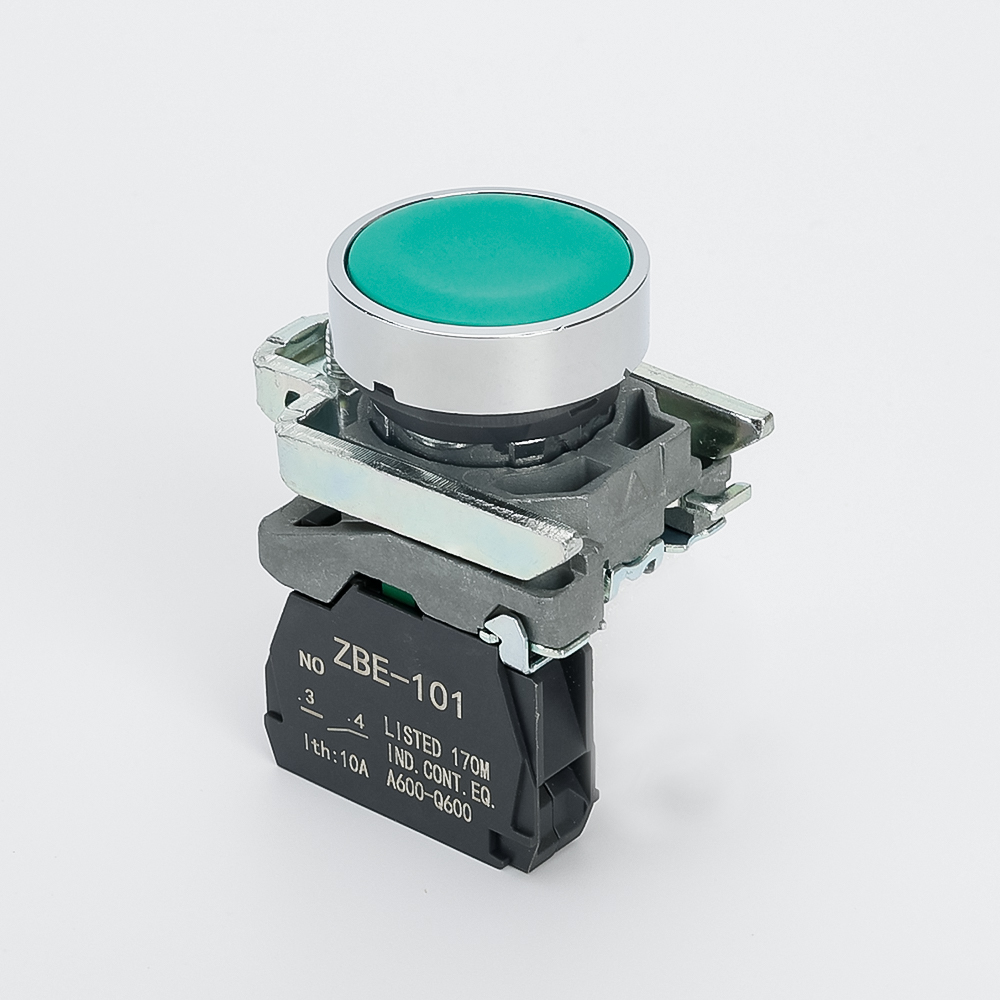

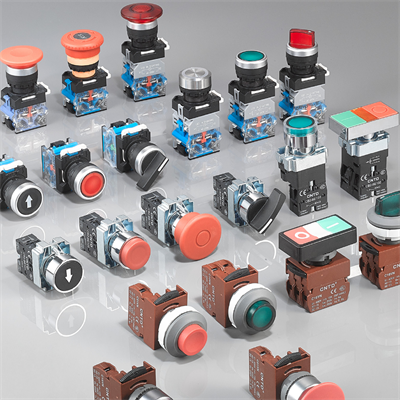

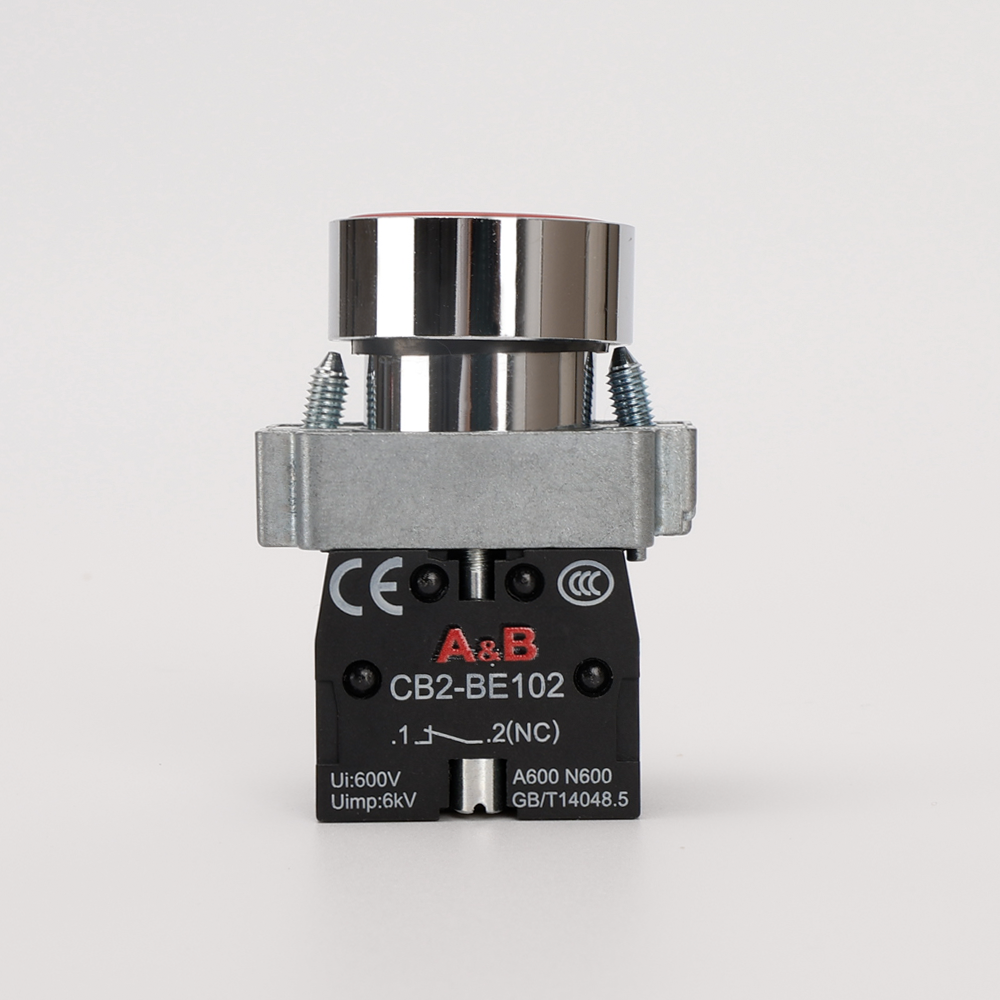

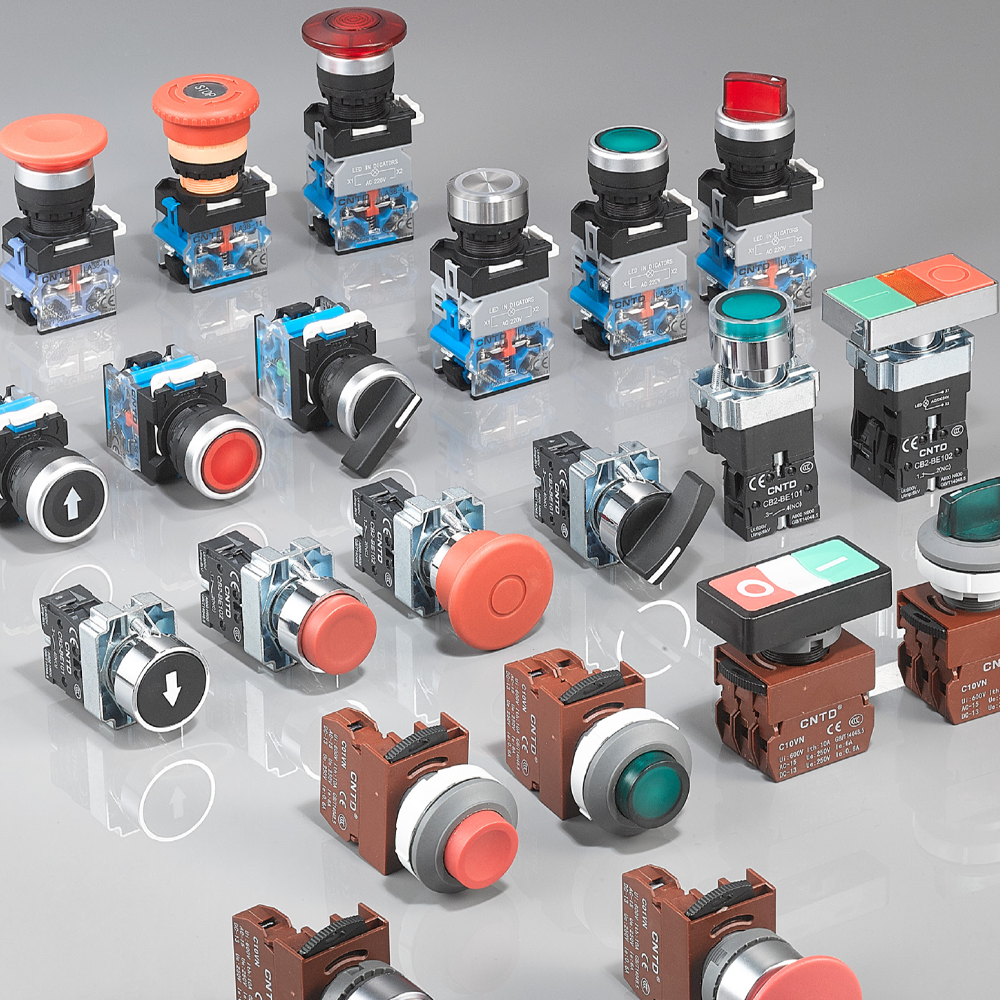

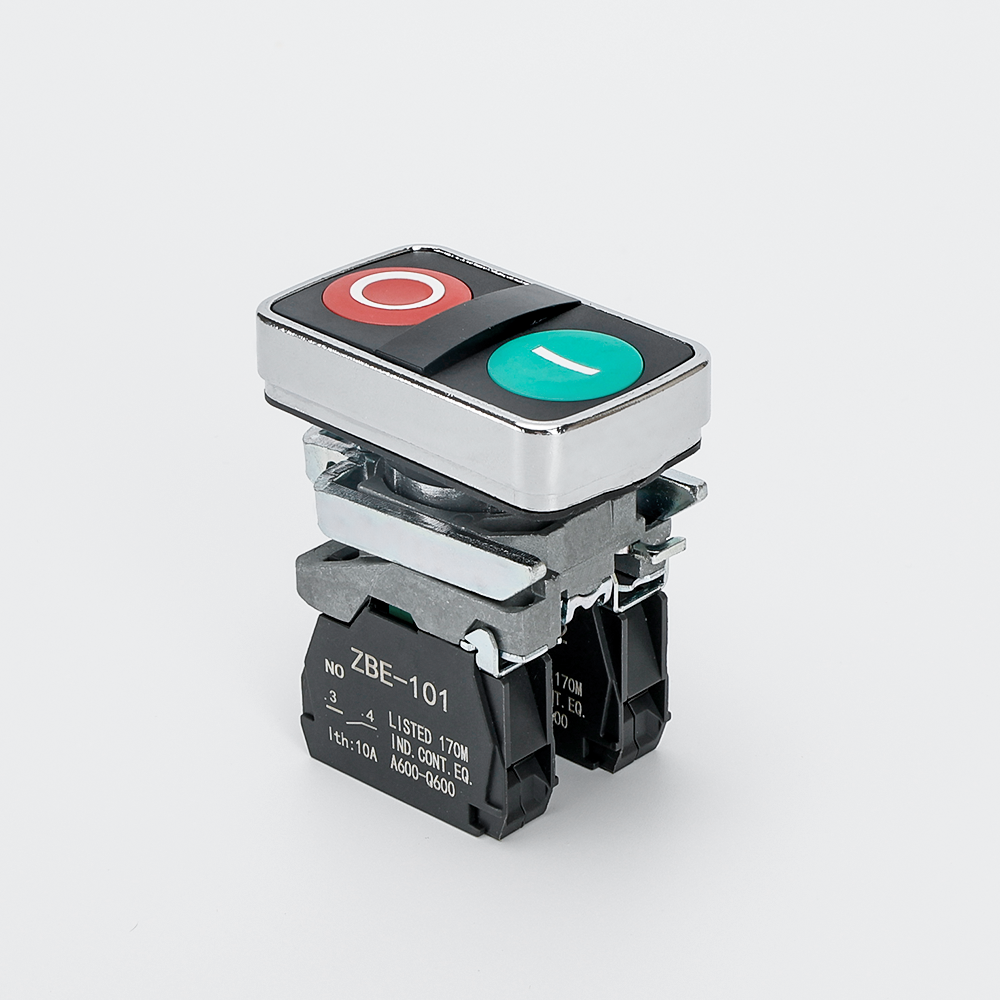

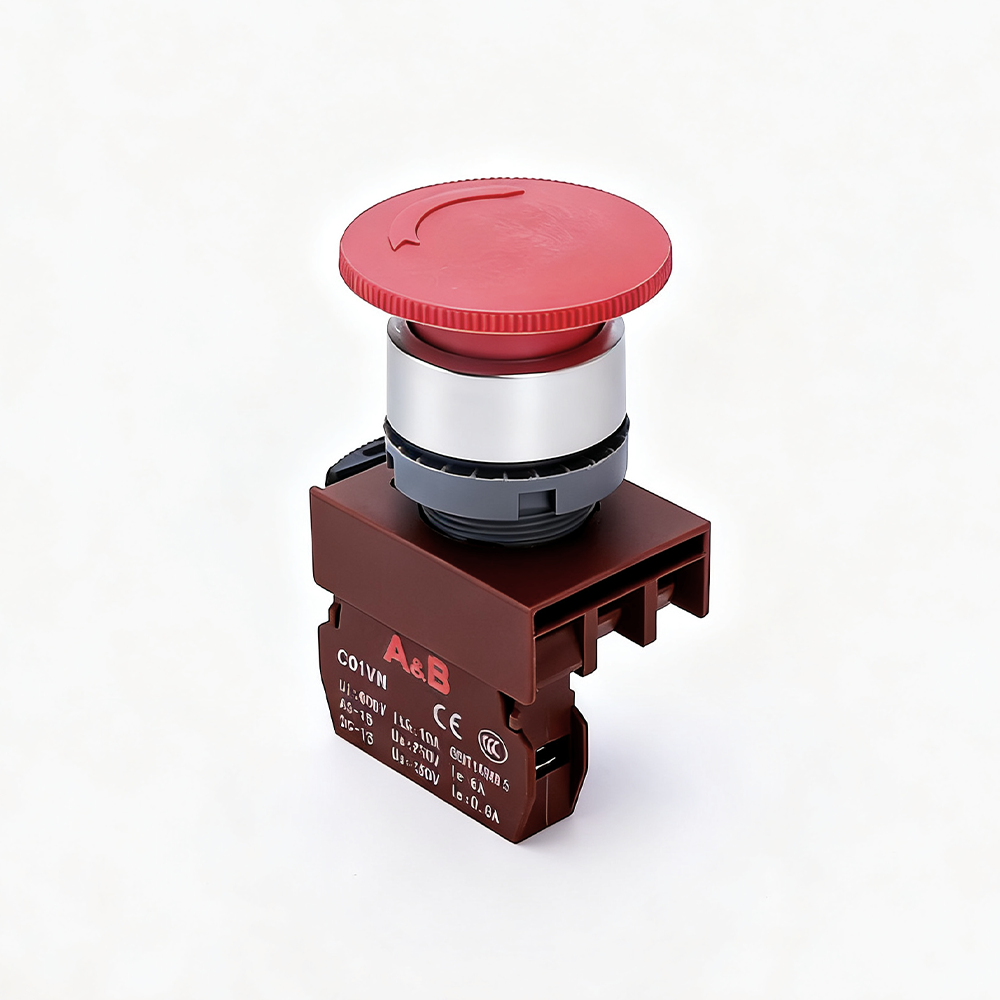

Thepush button series are used incontrolling circuit ofACvolatage upto 660v/AC50Hz,and DCvoltagebelow400v.lt is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flamplastic.
The contact adoptsspecial silver alloy in order to enjoy thebenefit of high anti-electricalerosion.The signal lamp series are suitable forelectricalappliances circuitofACvoltageupto380v/50Hz,andDCvoltagebelow380v.ltisidealforusing asindicatingsignals, warningsignals,emergencysignals,etc.OurproductscomplywithGB/T14048.1and1EC60947-5-1,allproductsareCE,IS09001, ROHS and UL certified.
Switch Ratings
| Rated insulation votage Ui | 600V | ||||||
| Rated thermal current Ith | 10A | ||||||
| Rated operational vottage Ue | 24V | 48V | 110V | 220V | 380V | ||
| Rated operational curent le | AC 50/60Hz | Resistive load | 10A | - | 10A | 6A | - |
| Inductiveload | 10A | - | 6A | 3A | 2A | ||
| DC | Resistive load | 8A | 4A | 2.2A | 1.1A | - | |
| Inductive load | 4A | 2A | 1.2A | 0.6A | - | ||
| Contact material | Siver aloy | ||||||
Minimum applicable load:3VAC.DC 5mA(Reference value) (The applicable range depends on the use environment and load type) | |||||||
Specifications
| Ambient temperature | -25℃~+75C(With no icing) |
| Humi dity | 45~85%RH |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MQ |
| Power frequency withstand voltage | 1890VAC/50Hz/60s |
| Vibration resistance | Amplitude:about 1.0mm/50Hz |
| Impact resistance | >10g |
| Degree of protection | IP40 |
| Electrical life | ≥100,000 times |
| Wiring capacity | Maximum:2×1.5mm²or 1×2.5mm²,Minimun:2×0.75mm²,Maximum insert:6.3×0.8mm |
LED Specifications
| LED type | Bidirectional LED | ||
| Rated voltage | AC/DC6V | AC/DC 12V | AC/DC 24V |
| AC/DC 36V | AC/DC 48V | AC/DC 110V | |
| AC/DC 220V | AC/DC 380V | - | |
| AC 110V | AC 220V | AC 380V | |
| Emitting color | ORD OGN YE OBL OWH BK | ||
| Life | 240000h | ||
