AUTO TEMPERATURE CONTROLLER：Shell material: ABB Protection grade:lP20

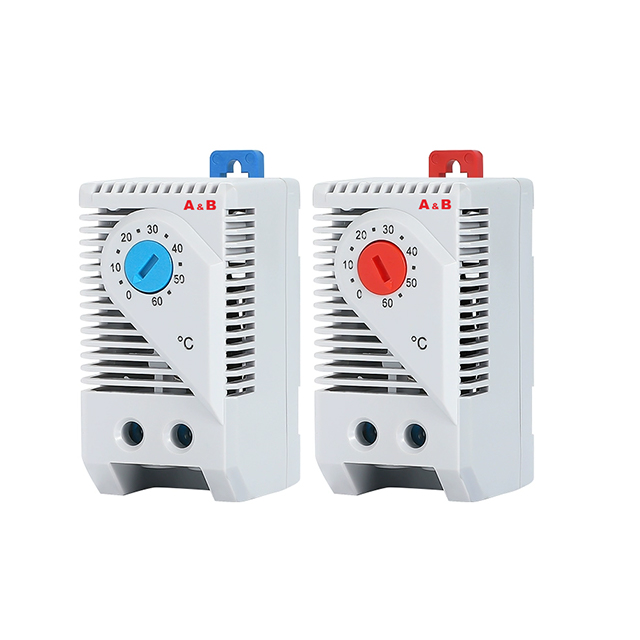

It is often used to monitor filter fans, heat exchangers or close the circuit to output signals when the temperature exceeds the set value.Tks011 thermostat (normally open): it is often used to monitor filter fans, heat exchangers or close the circuit to output signals when the temperature exceeds the set value.
thermostat (normally closed): it is usually used to connect the heater and usually used to connect the heater and reaches the set value.
Cabinet Temperature Controller
AUTO TEMPERATURE CONTROLLER
Shell material: ABB Protection grade: P20
ABKS 011
| Model | ABZRO 11 |
| Material code | 1018004 |
| Temperature range | 0-60℃ |
| Switch temperature tolerance | 7K(±4K) |
| Inductive element | Bimetallic sheet |
| Maximum switching capacity | 250VAC，10(2)A1120VAC，15(2)A DC 30W |
| Electrical connection | 4-pole 2.5mm，0.8Nm |
| install | 35mm DIN DIN-Rail Mounting |
| Terminal connection | UL94V0 |
| weight | 90g |
| size | 69x50x46mm |
| Operating /stored value range | -5°C to+80°C |
ABZR 011
| Model | ABZR-011 |
| Material code | 1018004 |
| Temperature range | 0-60℃ |
| Switch temperature tolerance | 7K(±4K) |
| Inductive element | Bimetallic sheet |
| Maximum switching capacity | 250VAC，10(2)A1120VAC，15(2)A DC 30W |
| Electrical connection | 4-pole2.5mm，0.8Nm |
| install | 35mm DIN DIN-Rail Mounting |
| Terminal connection | UL94V0 |
| weight | 90g |
| size | 69x50x46mm |
| Operating / stored value range | -5℃ to+80°C |
