Heater Body: cast aluminum 50,000 hours lifespan at 25°C (77°F).
High performance fan heater can prevent the formation of condensation and provide uniformair temperature for electronic / electrical components in the distribution cabinet. This producthas two types: with fan and without fan.
Normally closed contact: usually used to connect the heater and disconnect the circuit
when the temperature reaches the set value.

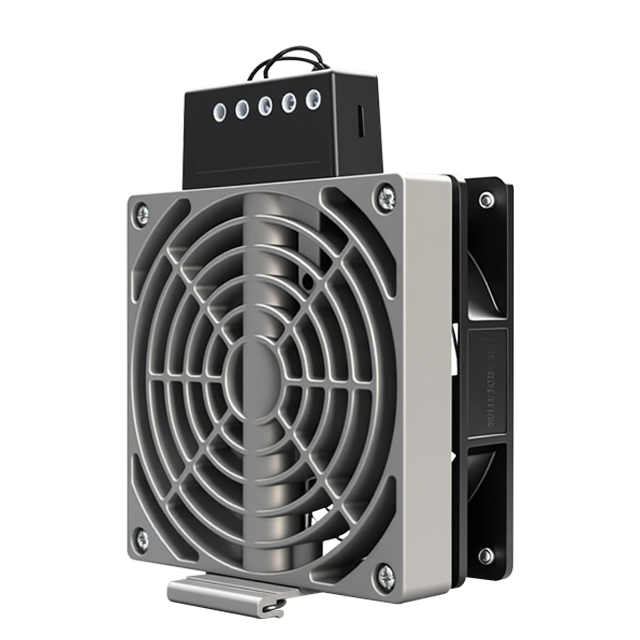

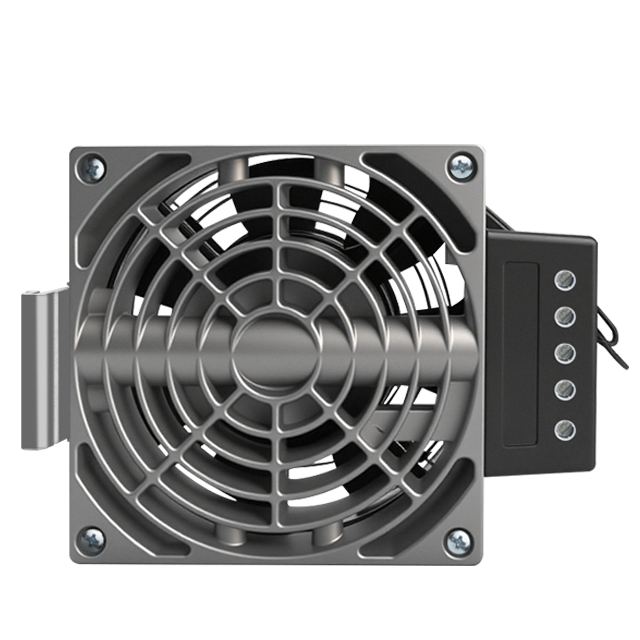

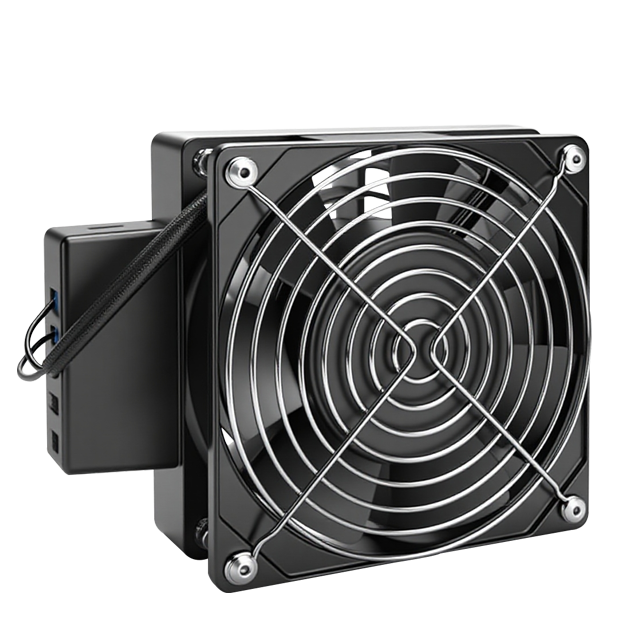

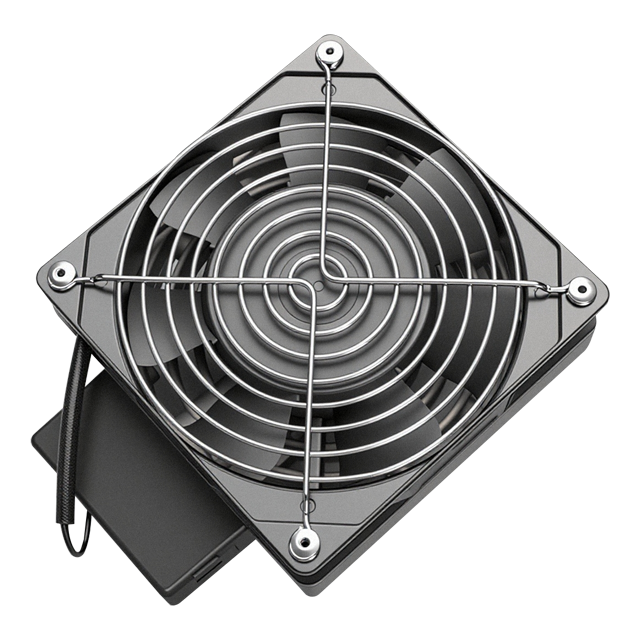

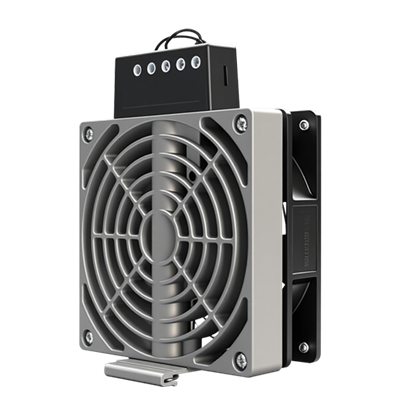

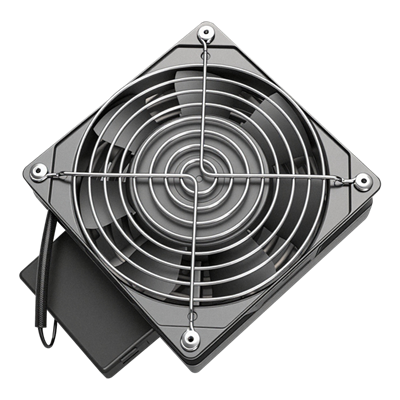

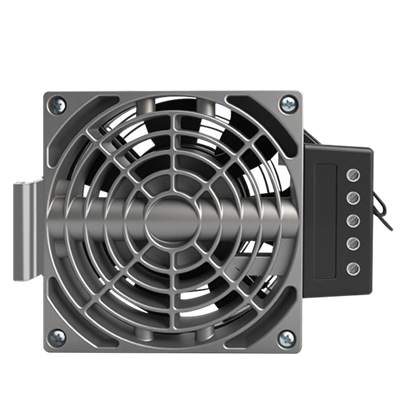

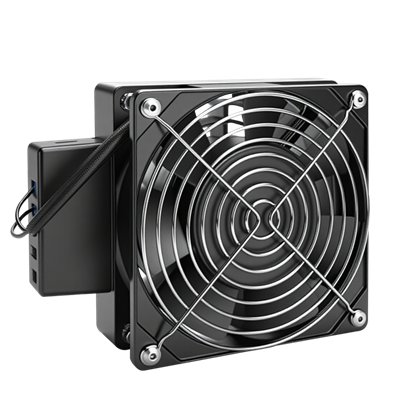

Fan heater
Shell material: stretched aluminumProtection grade: IP20
High performance fan heater canprevent the formation ofcondensation and provideuniform air
temperature forelectronic/electrical componentsin the distribution cabinet. Thisproduct has two
types: with fanand without fan.

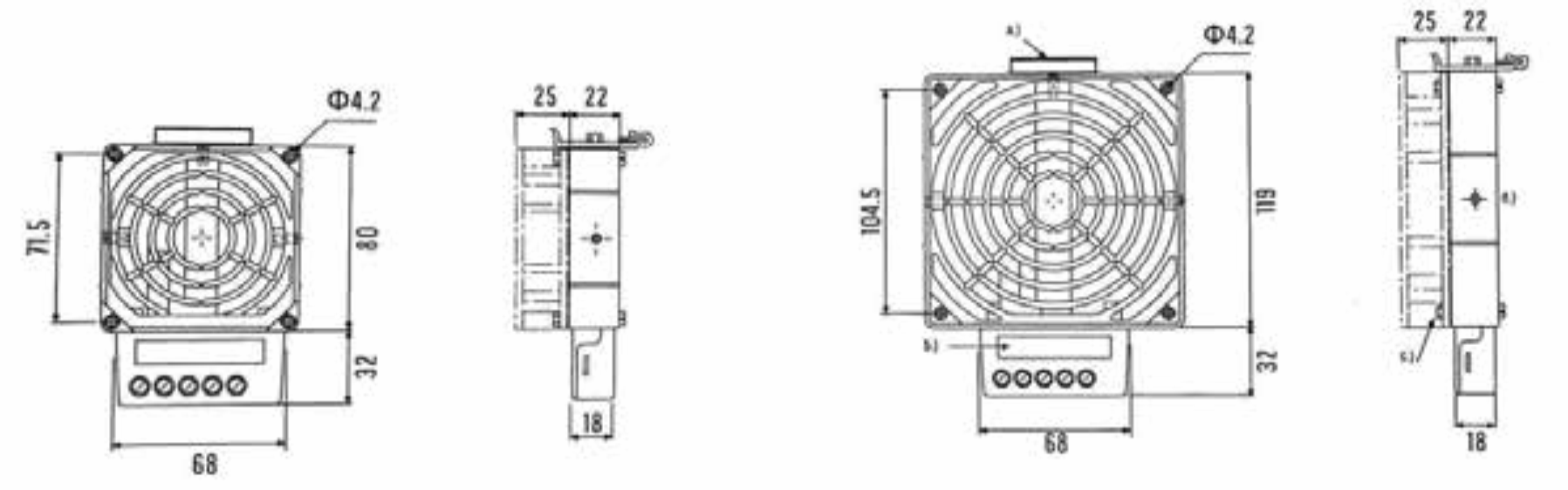

| Model | Logistics code | Heat | Pre fuse t (time delay) | Size | Weight(kg) |
| TRQFM100BA | 1017010 | 100W | 1A/1.4A | 80*112*22mm | 0.4 |
| TRQFM150BA | 1017011 | 150W | 1.25A/2A | 80*112*22mm | 0.4 |
| TRQFM200BA | 1017012 | 200W | 1.4A/2.5A | 119*151*22mm | 0.5 |
| TRQFM300BA | 1017013 | 300W | 2A/4A | 119*151*22mm | 0.5 |
| TRQFM400BA | 1017014 | 400W | 4A/5A | 119*151*22mm | 0.5 |
