Hard Wire:0.08-4.0mm'AWG28-12
Flexible Wire:0.08-2.5mm'AWG28-14
PCT 2-2 series and Y-42/63 series products are suitable for wiring iunction boxes and lighting appliances, etc.
These series connector with compact cage spring connection technology can connect multiple thin wires
from 0.08mm2 to 4mm? and hard wires less than or equal to 2.5mm2, without any tools for operation.
Push button/Warning Lamp
Push button
Surrounding temperature:-25°C~+55°C Air relative humidity:<85.
Warning Lamp
PVC shell, highly durable, impact-resistant, waterproof and dustproof.

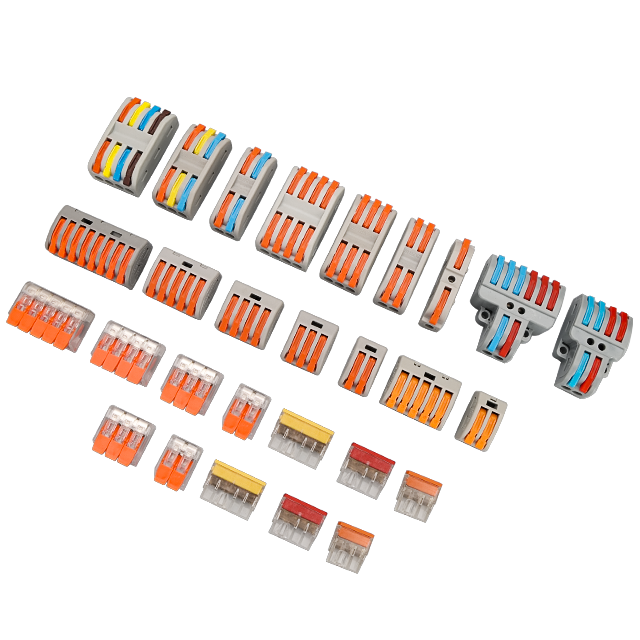

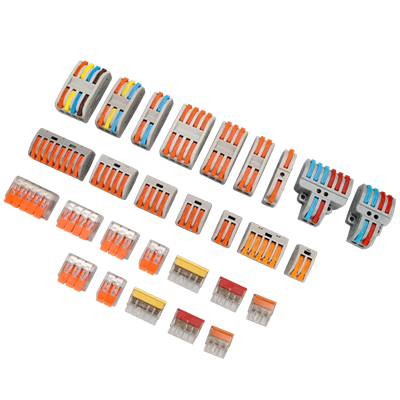

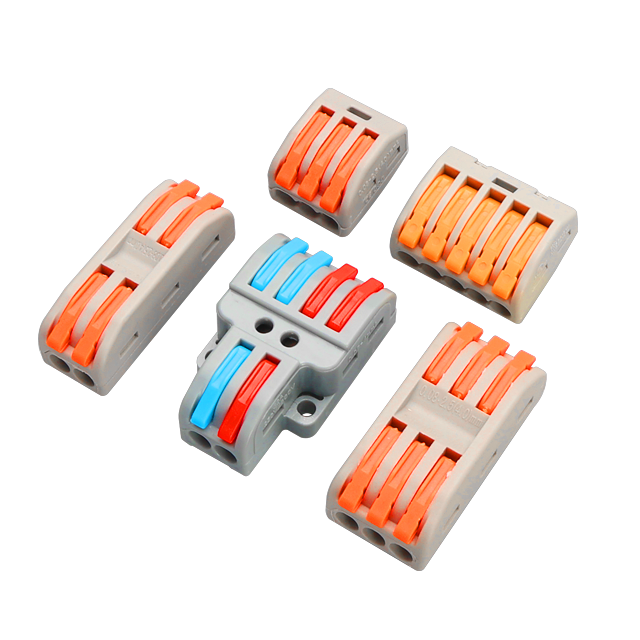

Compact Splicing Connectors
21 Series Regular Type
Wire Range Hard Wire:0.08-4.0mm² AWG28-12 Flexible Wire:0.08-2.5mm² AWG28-14 | Voltage: 250V Current:32A Material: PA66 | ||||
| Model | ABCT-212 | ABCT-213 | ABCT-214 | ABCT-215 | ABCT-218 |
| Size:(LxWxH) | 12.5x21x14.4mm | 17.1x21x14.4mm | 21.7x21x14.4mm | 26.3x21x14.4mm | 40.6x21x14.4mm |

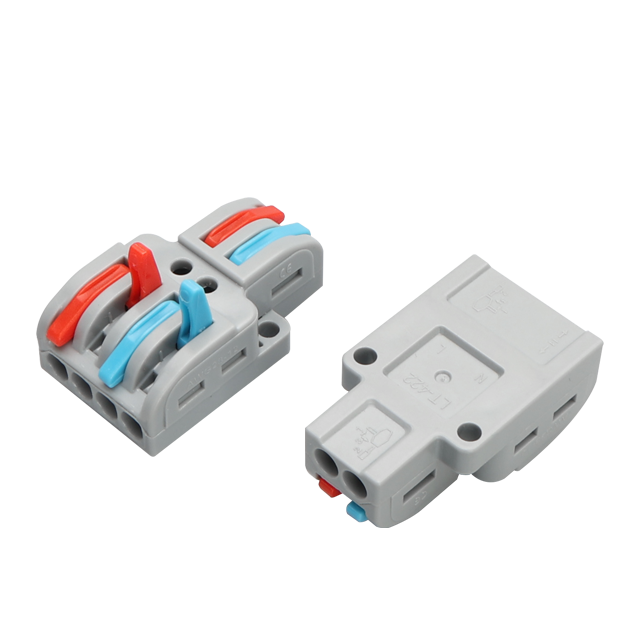

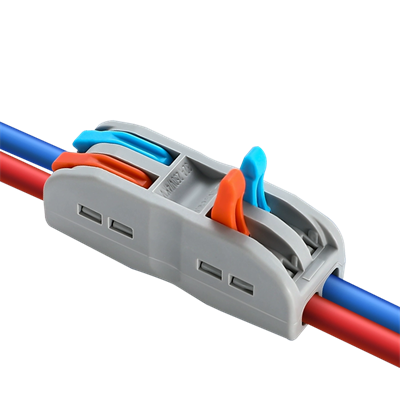

Both side in line Series
Wire Range Hard Wire:0.08-4.0mm² AWG28-12 Flexible Wire:0.08-2.5mm² AWG28-14 | Voltage: 250V Current:32A Material: PA66 | ||||
| Model | ABCT-2-2/ABCT-2-2H | ABCT-2-3/ABCT-2-3H | ABCT-2-4 | ABCT-2-5 | |
| Size:(LxWxH) | 13.6x40.3x14.5mm | 18.9x39.2x14.6mm | 23.6x40.3x14.5mm | 28.6x40.3x14.5mm | |
Plug-in Terminal Block For Hard Wire
Wire Range Hard Wire:0.75-2.5mm² AWG18-14 | Voltage: 400V Current:24A Material:PC | |||
| Model | ABCT-102 | ABCT-104 | ABCT-106 | ABCT-108 |
| Size:(LxWxH) | 9.3x19.4x13.4mm | 13x19.4x13.4mm | 18.6x19.4x13.4mm | 24.1x19.4x13.4mm |
